In the world of industrial fabrication, few things drain profitability faster than manual "kerf and bash" cutting methods. Relying on angle grinders, standard chop saws, or manual filing to create complex joints creates a bottleneck that stifles production. It introduces human inconsistency, drives up labor costs, and results in material waste that modern workshops simply cannot afford. When precision defines your reputation, the gap between a manual cut and a machine-finished joint becomes the difference between winning and losing contracts.

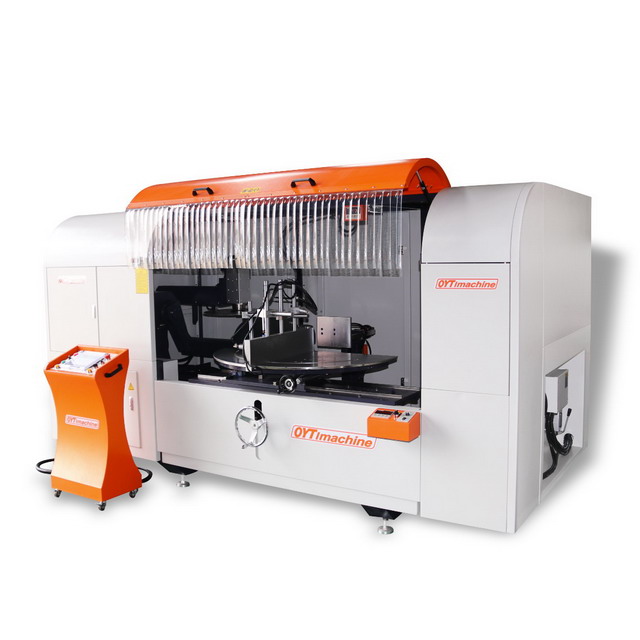

The solution lies in the Notching Saw. This is a specialized industrial machine engineered to remove V-shaped or rectangular sections from profile ends or mid-sections with surgical precision. Unlike general-purpose cutters, these machines are purpose-built to facilitate seamless joinery for mullion and transom connections, facade corners, and intricate tube intersections. They transform a process that once took skilled craftsmen minutes into an automated cycle that takes seconds.
This guide goes beyond simple definitions. We will explore how upgrading to automation—from digital display units to fully integrated CNC systems—reshapes production efficiency in aluminum, PVC, and steel fabrication. You will learn how to evaluate machine capabilities, calculate potential ROI, and select the right equipment tier for your specific operational volume.
Function over Form: Notching saws differ from standard miter saws by utilizing dual blades or specialized end-mills to cut two surfaces simultaneously, ensuring zero-gap joinery.
Tiered Technology: Options range from manual gravity-fed units to 5-Axis CNC Notching Saws, with selection depending heavily on throughput volume and profile complexity.
ROI Drivers: Investment is justified through reduced secondary processing (no filing/grinding needed) and material savings via software-optimized cutting lists.
Safety & Compliance: Modern automatic saws mitigate the high risks associated with manual free-hand fabrication.
At its core, a notching saw is an industrial cutting solution designed to remove specific geometry from a workpiece without severing it completely. While a cutoff saw separates a piece of material, a notching saw modifies it to fit against another surface. This distinction is critical for fabricators working with architectural envelopes, window frames, and structural framing.
The machine performs two primary functions that dictate its design. The first is the V-notch. This is essential for creating 90-degree corners in continuous profiles, such as curtain wall frames or cable trays. By removing a 90-degree wedge from the profile while leaving the outer face intact, you can bend the material to form a perfect corner without welding or using heavy corner keys.
The second function is end-notching. This is commonly seen in mullion and transom connections. Here, the machine removes a rectangular or shaped section from the end of a profile. This allows it to sit flush against the side of another profile, creating a T-joint. Achieving this manually requires multiple cuts and significant filing. A dedicated machine achieves this in a single pass.
It is important to distinguish between the two main equipment categories to avoid confusion during procurement. While the terminology often overlaps, the machinery is distinct.
Profile Notching: This is the focus of high-precision architectural fabrication. These machines handle square tubing, rectangular tubing, and complex window profiles (aluminum or PVC). They utilize circular saw blades or end mills to cut flat planes.
Tube Notching (Fishmouthing): This process is specific to round pipes used in roll cages, handrails, and fluid piping. It creates a curved "fishmouth" cut to fit a round pipe against another round pipe. While technically "notching," the tooling usually involves hole saws or abrasive belts rather than the dual-blade systems discussed here.
In industries like curtain wall manufacturing, the tolerance for gaps is virtually zero. A gap in a facade joint can lead to water ingress, structural weakness, or visible aesthetic flaws that architects will reject. Manual cutting often leaves irregular edges that require silicone or filler to hide. A precision notching machine ensures the cut angle is exact and the surface finish is smooth. This allows for "hairline" joints that are structurally sound and visually seamless immediately after the cut.
Not all fabrication shops have the same needs. A custom job shop repairing gates has different throughput requirements than a factory producing 500 window frames a day. Understanding the tiers of technology helps you match the investment to your production reality.
| Machine Tier | Target User | Primary Benefit | Setup Time |
|---|---|---|---|
| Manual / Semi-Auto | Repair shops, Low volume | Low initial cost | High (Manual measure) |
| Digital Display | Custom Fab, Mid-volume | Repeatable accuracy | Medium |
| Automatic Linear | Mass Production | High throughput | Low (Programmed) |
| 5-Axis CNC | Aerospace, Complex Facades | Complex 3D Geometry | Very Low (Software driven) |
These units represent the entry point for specialized notching. They generally rely on gravity feeds or simple hydraulic assists. They are best suited for low-volume, custom job shops where every cut is different. However, they possess significant limitations. The operator must manually measure and mark every cut. This reliance on human skill introduces a higher risk of error. If the operator misreads a tape measure by a millimeter, the joint fails.
The Digital Display Notching Saw serves as the "middle ground" upgrade for growing shops. These machines replace analog rulers and stops with electronic measurement systems. They feature digital readouts for height, depth, and angle adjustments, often providing accuracy down to 0.1 degrees.
The primary benefit here is the reduction in setup time. When switching from one profile size to another, the operator simply adjusts the machine until the screen matches the work order. This eliminates the "cut, measure, adjust, cut again" cycle typical of manual setups.
For standard window and door manufacturing, speed is the priority. An Automatic Notching Saw integrates pneumatic clamping and auto-feeding mechanisms. These machines can often run pre-programmed cut lists. The operator loads a length of profile, and the machine automatically advances the material, clamps it, performs the notch, and ejects the finished piece. This high-throughput capability removes the operator from the active cutting zone, improving safety and consistency.
This is the enterprise solution for the most demanding applications. A 5-Axis CNC Notching Saw offers capabilities that manual or simple automatic machines cannot match. They feature multi-angle interpolation, meaning the cutting head can move and rotate in five directions simultaneously.
These machines can machine complex 3D notches, chamfers, and even perform drilling or tapping holes in a single pass. They are essential for complex architectural envelopes where profiles meet at irregular angles, or for aerospace structural components requiring strict geometric dimensioning and tolerancing (GD&T).
Understanding the workflow of a notching saw reveals why it is superior to general-purpose tools. The process is engineered to control variables—movement, vibration, and angle—that human hands simply cannot manage consistently.
The quality of a cut is determined before the blade even spins. It relies entirely on clamping. Industrial notching saws utilize pneumatic clamping systems that hold the profile both horizontally and vertically. This dual-axis pressure prevents the thin walls of aluminum or PVC profiles from deforming under the stress of the blade.
Risk Note: Manual holding, which is common in DIY scenarios, is strictly prohibited in industrial settings. The cutting forces involved in notching are non-linear. If a profile is held by hand, the blade can grab the material, leading to catastrophic injury and damaged workpieces. Pneumatic clamps ensure the material remains immobile throughout the entire cycle.
The heart of the machine is the blade system. Most V-notch saws employ a Dual-Blade System. Two circular saw blades are mounted at 45-degree angles (or variable angles on higher-end models) to each other. They plunge into the material simultaneously or sequentially to remove the wedge in one cycle.
Crucially, these machines often use Counter-Rotation. The blades spin in opposite directions relative to the feed. This creates a shearing action that pushes the material against the fence rather than pulling it away. This dynamic prevents the thin edges of the profile from tearing or bending, ensuring a burr-free finish that requires no secondary sanding.
A standard operation follows a strict sequence to ensure safety and precision:
Profile Positioning: The operator or auto-feeder places the material against the back fence and side stop.
Clamp Engagement: Pneumatic cylinders activate, securing the profile vertically and horizontally.
Blade Advance: The cutting head advances. On quality machines, this is a hydro-pneumatic feed. The air provides speed, while oil provides resistance, resulting in a smooth, non-jerky movement.
Retraction: The blades retract rapidly to their home position.
Clamp Release: Only after the blades are clear does the clamp release, allowing for material removal.
When considering an upgrade to a CNC Notching Saw, the sticker price is often the initial hurdle. However, the Return on Investment (ROI) becomes clear when you analyze the hidden costs of manual fabrication.
Consider the time cost of a traditional workflow. Using a chop saw and a grinder to create a mullion notch typically takes a skilled fabricator 5 to 10 minutes per joint, including measuring, cutting, and deburring. An automatic machine completes this same cycle in seconds. If a shop produces 50 joints a day, the labor savings alone can pay for the machine financing in a matter of months.
Scrap is money left on the floor. Manual cutting often leads to "safe" cutting—leaving extra material to file down later—or mistakes that ruin entire lengths of expensive extrusion. CNC integration reduces scrap significantly. Software optimizes the placement of notches on raw stock lengths, nesting cuts to ensure maximum yield from every bar. Over a year, a 5% reduction in aluminum waste contributes directly to the bottom line.
There is a hidden cost to "re-work." When a manual notch is slightly off-angle, the welder or assembler must spend time forcing the fit or filling gaps. This slows down downstream processes. An automated saw produces consistent geometry every time. This reliability eliminates the bottleneck at the assembly station, allowing the entire production line to move faster.
Manual fabrication is difficult to scale because it requires finding and training skilled tradespeople. Upgrading to a machine with auto-feed capabilities removes this dependency. You can increase production volume by simply running the machine longer, without needing to hire more master fabricators.
Not all machines are built equal. When evaluating a Notching Saw Manufacturer, you must look beyond the price tag and inspect the engineering details that affect long-term reliability.
Start with the physical limits. Evaluate the Maximum Cutting Height and Profile Width. A standard machine might handle 200mm profiles, but if you take a contract for large curtain wall systems, you might need 300mm capacity. Buying a machine that is "just big enough" for today's work limits your ability to bid on larger projects tomorrow.
For CNC models, software integration is critical. Does the machine's control system import standard .DXF files? Can it connect to your existing ERP or window design software? A machine that requires manual programming for every job defeats the purpose of automation. Seamless data transfer from the design office to the factory floor is a requirement for modern efficiency.
Industrial saws have high-wear components. Carbide blades dull, pneumatic seals wear out, and sensors can drift. The availability of domestic parts and support is vital. You should ask the manufacturer about their spare parts inventory and service response times. A machine waiting two weeks for a solenoid valve is a machine that is losing money.
Finally, never compromise on safety. Mandatory evaluation should include fully enclosed guarding that prevents operation if the door is open. Look for two-hand operation controls, which force the operator to keep both hands safe on the control panel during the cut. Emergency braking systems that stop the blade in seconds (rather than letting it coast) are also essential for protecting your workforce.
Moving from manual fabrication to a dedicated notching saw marks a significant shift for any business. It transitions a workshop from "craftsmanship," where quality depends on the individual hands of the worker, to "manufacturing," where quality is a repeatable, guaranteed standard.
For small, custom shops, Digital Display Notching Saws offer the versatility needed to handle varied jobs with speed and precision. However, for volume manufacturers producing windows, doors, or facades, the investment in CNC Notching Saws is non-negotiable. The integration of software and automation provides the throughput necessary to remain competitive in a tight market.
Your next step should be an audit of your current production. Calculate your "cost per cut" by factoring in labor time, abrasives, and rework. Once you see the real numbers, the path to choosing the right machine tier becomes clear.
A: A miter saw is designed to cut through the entire width of a profile, separating it into two pieces. A notching saw is designed to remove a specific internal section (like a V-shape or rectangular bite) while keeping the rest of the profile continuous. Alternatively, it prepares a specific joint geometry on the end of a profile without just cutting it straight off. Notching saws are for joinery; miter saws are for length.
A: It depends on the machine's configuration. Aluminum requires high blade RPM and mist coolants (lubrication). Steel requires lower RPMs and often flood coolant or cold-saw technology to prevent overheating the blade. While some versatile machines exist with variable speed drives, high-volume shops usually prefer dedicated machines for heavy steel gauges to maximize blade life and cut quality.
A: The primary advantage is the ability to process compound angles and perform multiple operations in one setup. A 5-axis machine can cut complex 3D notches, drill holes, and tap threads on different faces of the profile without the operator ever moving the part. This eliminates downstream processing steps, drastically reducing handling time and accumulation of errors.
A: For high-mix, low-volume production, yes. If your shop changes setups frequently between different profile sizes, a digital display is a high-ROI feature. It replaces the slow process of using a tape measure and trial-and-error cuts with a precise digital readout. This significantly reduces setup time and material waste during calibration, paying for itself quickly in saved labor.
