Procuring equipment for aluminum profile processing requires shifting focus from standard block milling to handling elongated, thin-walled extrusions. Standard machinery often fails when applied to specialized extrusion tasks. You risk severe profile deformation, excessive cycle times, and poor surface finish. The wrong equipment directly threatens product quality and production efficiency. To avoid these issues, your chosen equipment must align closely to your specific production volumes, part complexities, and floor-space constraints. We will explore the critical technical specifications you need to scrutinize before making a purchase. You will learn how to evaluate axis configurations, workholding systems, and software compatibility effectively. This guide provides actionable insights for optimizing your fabrication workflow. It helps you avoid costly implementation mistakes.
The business problem starts by differentiating between standard billet machining and profile machining. Billet machining involves solid blocks of raw material. You clamp a solid block into a heavy-duty vise. The dense material withstands heavy cutting forces easily. Profile machining presents a completely different scenario. Aluminum extrusions form hollow, elongated shapes. Common applications include window frames, door tracks, architectural facades, and industrial framing systems. You cannot treat these thin-walled structures like solid billets. They require dedicated CNC Profile Machining Centers to maintain dimensional integrity.
Structural challenges dictate the need for specialized equipment. Extrusions feature thin walls and complex internal webbing. These walls remain highly susceptible to vibration and chatter during aggressive cutting cycles. Standard milling forces can easily crush or bend the hollow material. Deformation ruins the component instantly and creates costly scrap. Specialized machining centers counteract this by utilizing adaptive support structures. They distribute holding pressure evenly across the fragile surface.
Work envelope realities also render standard machinery obsolete for this application. Standard raw extrusion lengths typically span 3 to 7 meters. Sometimes they exceed 7 meters for custom architectural projects. Pre-cutting these long extrusions before routing wastes valuable production time. It increases labor costs and introduces extra handling errors. Specialized profile centers feature extended X-axis travel. They accommodate full-length extrusions directly from the mill. You load the entire bar once. The machine then processes multiple distinct parts along the single extrusion. This continuous operation maximizes material yield.
Understanding 3-axis limitations is your first step. A 3-axis machine handles simple operations adequately. It works well for single-face drilling or basic routing. However, it severely limits complex production workflows. Processing multiple faces requires manual part flipping. Manual repositioning introduces high labor costs into your operation. It also destroys precision rapidly. Every time an operator moves the part, accuracy drops. Tolerance stack-up becomes a major issue across long extrusion lengths.
Stepping up to a 4-Axis Aluminium CNC Machining Center changes the dynamic entirely. These machines feature a rotating spindle or an indexing rotary table. The cutting tool can access three distinct sides of a profile in a single setup. You eliminate manual flipping from the process. This configuration delivers a rapid return on investment. It reduces cycle times drastically. It minimizes handling errors caused by human intervention. You maintain perfect alignment across multiple machined faces effortlessly.

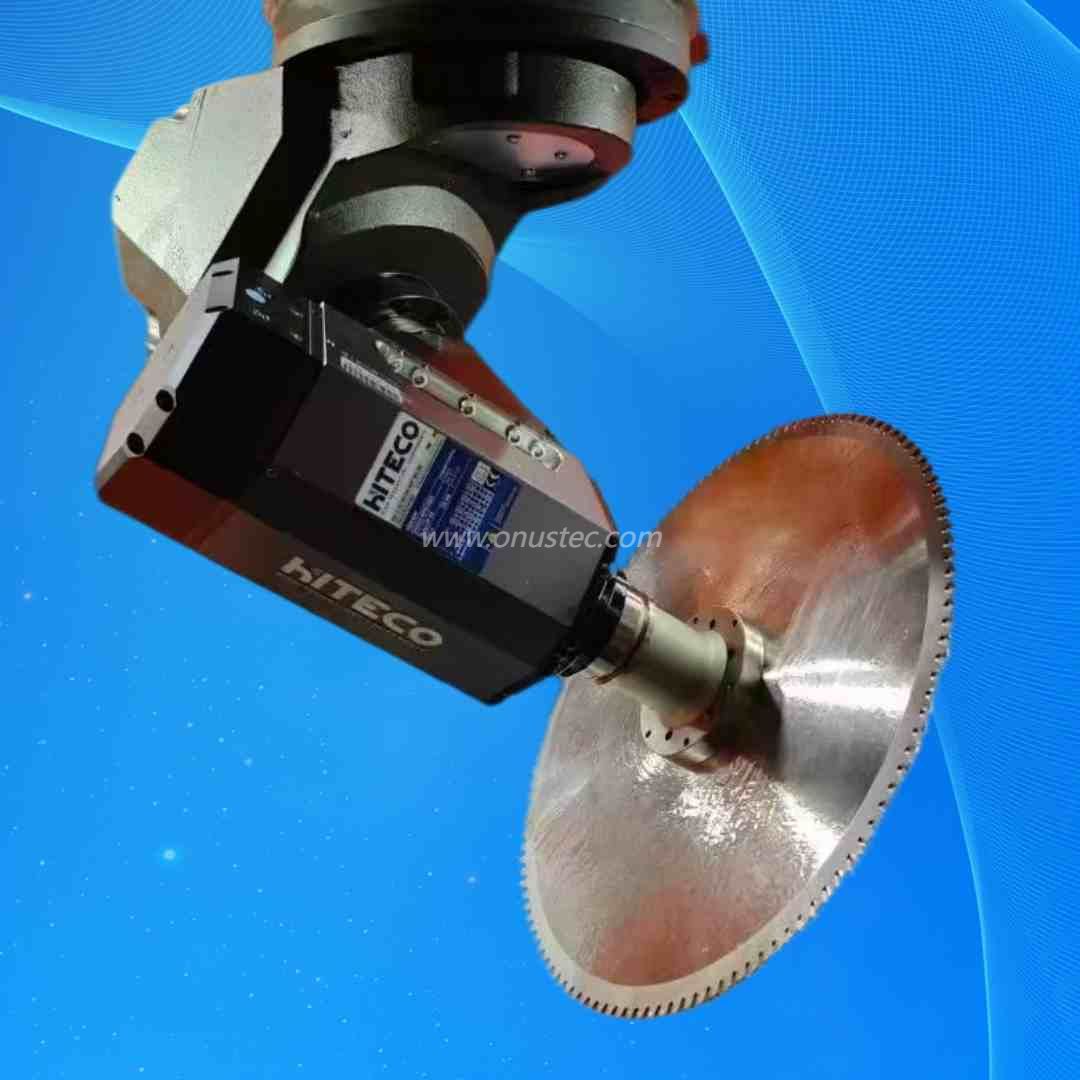

For ultimate geometric flexibility, you should consider a 5-Axis Aluminum CNC Profile Machining Center. This technology solves complex architectural challenges. It easily handles intricate facades, compound angles, and multi-sided industrial components. The spindle approaches the workpiece from nearly any angle. However, you must weigh specific trade-offs carefully. The initial capital expenditure runs much higher. Operators also face a steeper learning curve regarding CAM programming. Yet, for complex multi-sided parts, maximum geometric flexibility justifies the initial hurdles.
Axis Configuration Capability Comparison
| Configuration | Primary Use Case | Setup Efficiency | Part Complexity Handled |
|---|---|---|---|
| 3-Axis | Single-face drilling and routing | Low (requires manual flipping) | Basic / Flat |
| 4-Axis | Three-sided profile machining | High (single setup for 3 sides) | Moderate / Standard extrusions |
| 5-Axis | Compound angles and complex facades | Maximum (multi-angle continuous) | High / Advanced geometric designs |
Selecting the ideal aluminum cnc machine requires deep analysis of its core components. Spindle dynamics rank at the top of this list. Aluminum machining requires speed over low-end torque. Cutting aluminum efficiently requires high surface footage. You need high-speed machining capabilities to achieve clean cuts. Spindles must typically run between 12,000 and 24,000 RPM. Slower speeds cause the material to tear rather than shear. High RPMs ensure a mirror-like surface finish and prolong tool life.
Machine rigidity and frame construction directly impact part quality. You must assess the weight and material of the gantry and base carefully. Cast iron provides excellent vibration dampening properties. Welded steel offers rigid structural support but dampens vibration differently. A lightweight frame will transfer spindle vibration directly into the thin-walled extrusion. This transfer causes chatter marks on the finished part. Heavy, rigid frames absorb these frequencies. They keep the cutting tool perfectly stable during rapid direction changes.
Tooling capacity and the Automatic Tool Changer (ATC) dictate production speed. Evaluate your required number of tool stations before buying. Complex profiles often require drills, taps, end mills, and specialized form tools. A machine should house enough tools to complete the most complex part without manual intervention. Tool-change speed also matters immensely. Shaving seconds off a tool change accumulates into hours of saved time weekly. Fast ATCs help you meet aggressive target cycle times consistently.
Workholding systems represent a major operational risk. Standard vises distort fragile extrusions upon clamping. Automated clamping systems provide the only reliable solution. You need pneumatic or motorized clamps specifically designed for hollow profiles. These clamps automatically adjust their position via CNC programming. The clamps dynamically move out of the way to avoid collision as the spindle approaches. This dynamic avoidance prevents catastrophic crashes and machine damage.

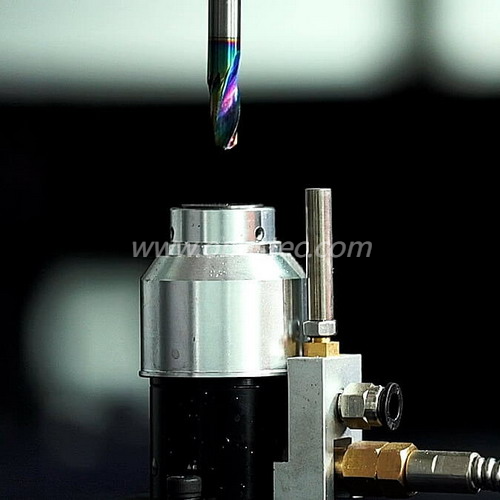

Coolant and lubrication strategies require careful evaluation. You must choose between Minimum Quantity Lubrication (MQL) and traditional flood cooling. We strongly recommend MQL for aluminum profiles. Aluminum tends to weld itself to the cutting tool under heat. This phenomenon is known as built-up edge (BUE). MQL sprays a precise, micro-droplet mist of oil directly onto the cutting edge. It prevents BUE entirely. MQL also ensures parts emerge clean and dry. It eliminates the need for messy washing stations and ensures strict environmental compliance.
Chip evacuation poses another severe challenge. Aluminum chips are incredibly voluminous. They take up massive amounts of space quickly. You must assess the inclusion of integrated chip conveyors. Manual chip clearing stops production and wastes operator time. Safety enclosures also play a vital role here. High-speed spindles throw chips at dangerous velocities. Enclosures maintain shop-floor safety. They also channel chips directly into the automated conveyor system for continuous operation.
CAD and CAM compatibility determines your ultimate success. The machine hardware is only as good as the code driving it. You must verify software integration early in the purchasing process. The Original Equipment Manufacturer (OEM) software must integrate seamlessly into your existing workflow. Evaluate compatibility against popular architectural or mechanical CAD systems. Systems like AutoCAD, SolidWorks, or specialized fenestration software must communicate flawlessly. A poorly integrated post-processor will generate flawed code. This leads to scrapped parts and endless troubleshooting.
Facility requirements often catch buyers off guard. You must factor in the physical footprint of the machine. These long-bed machines require massive floor space. Operators also need clearance to load 7-meter extrusions safely. Power requirements demand strict attention. Verify your facility can supply the correct voltage and phase without voltage drops. Pneumatic air supply quality is equally critical. High-speed spindles rely on constant air purges to keep bearings clean. You must supply dry, highly filtered air. Moisture in the air lines destroys expensive spindles rapidly.
Training and ongoing support determine long-term uptime. Hardware breakdowns happen in every production environment. Assess the vendor Service Level Agreement (SLA) carefully. Investigate their local parts availability. Shipping replacement parts from overseas halts production for weeks. Technician response times matter immensely. You need guarantees regarding on-site service to prevent catastrophic downtime. Dedicated operator training ensures your team maximizes machine capabilities safely.
Choosing the right equipment demands a logical shortlisting process. Base your final decision on a strict matrix of operational realities. Part complexity should determine your required axis count. Production volume will dictate your automation needs, especially regarding dynamic clamping and tool changing. Facility constraints must finalize your size and power parameters. Balancing these factors ensures you select a highly efficient, capable machine tailored specifically to your extrusion workflow.
As a next step, we strongly recommend requesting a comprehensive time-study. Ask the vendor to perform a physical test-cut using your actual aluminum profile files. This proof of concept reveals the true capabilities of the equipment. It exposes any software integration flaws before you commit. Never sign a purchase order without verifying the machine cuts your specific material to your exact tolerance requirements.
A: Aluminum machines require high-speed spindles, typically operating between 12,000 and 24,000 RPM. The exact speed depends heavily on your tool diameter and desired feed rates. Small-diameter tools require the highest RPMs to achieve the necessary surface footage for a clean, shear cut.
A: Standard CNC routers lack the necessary rigidity and specialized clamping systems. Routers are designed primarily for flat sheet goods like wood or plastic. Profile machining centers feature extended beds and dynamic clamps built specifically to support fragile, elongated structural extrusions without causing deformation.
A: You can prevent built-up edge by using single-flute or up-cut tool geometries specifically designed for aluminum. Applying specialized tool coatings like Zirconium Nitride (ZrN) reduces friction significantly. Combining proper tooling with a precise Minimum Quantity Lubrication (MQL) system keeps the cutting edge cool and clean.
A: Typical industry lead times range from 12 to 20 weeks. This extended timeframe accounts for manufacturing custom bed lengths, integrating specific clamping configurations, and performing rigorous factory calibration before shipping. Complex 5-axis heads also require extensive testing prior to final delivery.
