In high-production environments like window, door, and industrial aluminum fabrication, the cutting stage often becomes the primary bottleneck. Relying on manual measuring or semi-automatic saws creates a ceiling on throughput and introduces human error that eats into profit margins. This limitation forces manufacturers to seek automated solutions that can handle complex cut lists without constant manual intervention. The industry standard solution for overcoming these hurdles is the 3-Axis CNC Double Mitre Saw.

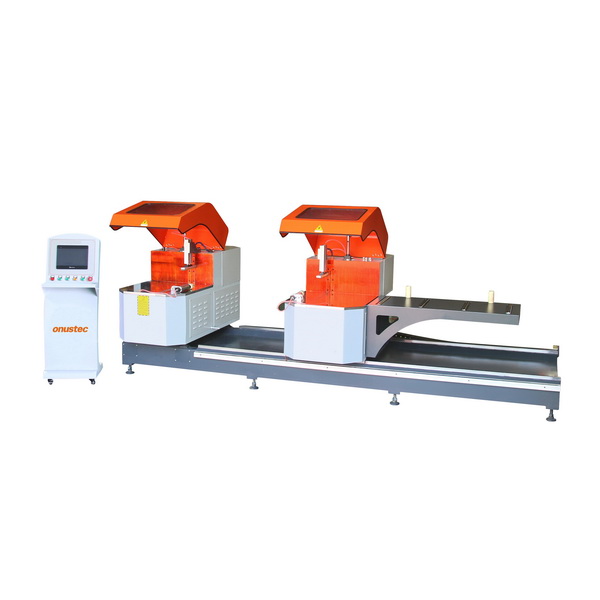

Unlike machining centers that mill or drill, a 3-axis saw in this context refers to the specific automated control of three distinct movements: Axis 1 controls the cutting length (carriage position), Axis 2 controls the left head angle, and Axis 3 controls the right head angle. This configuration allows the machine to position itself and tilt both blades simultaneously based on digital data. The core decision for shop managers lies in balancing the higher capital expenditure of these advanced systems against the operational gains in speed, accuracy, and drastically reduced scrap material.
This article explores whether upgrading to a fully automated cutting line is the right move for your production floor, detailing the specific advantages, risks, and ROI factors involved.
Precision: Servo-driven axes eliminate manual calibration errors, offering typical tolerances of ±0.1mm.
Flexibility: "3-Axis" capability allows for instant, software-controlled angle changes (e.g., oscillating between 45°, 90°, and variable angles) without mechanical setup.
Throughput: Ideal for "High-Mix" production lists where every cut length and angle varies; less crucial for "Low-Mix" identical batching.
Cost: Represents a significant investment premium over pneumatic or fixed-head double mitre saws.
Transitioning from manual saws to full CNC automation changes the fundamental nature of your production line. It shifts the skill requirement from "measuring and cutting" to "managing workflow," delivering benefits that manual methods simply cannot replicate.
Standard double mitre saws are often limited to fixed pneumatic stops. They usually snap to 45° or 90°. If you need to cut a 67.5° angle for a custom geometric window or a specialized curtain wall interface, a standard saw requires a manual setup that kills productivity. In contrast, a Multi Angle 3-Axis CNC Double Mitre Saw allows for continuous angular adjustment.
Because the angle adjustments are motor-driven rather than reliant on physical hard stops, the machine can oscillate between different angles for every single cut. This capability is essential for complex architectural joinery, such as triangular windows, skylights, and non-standard geometric framing. You can process these complex orders in the same flow as your standard rectangular frames without stopping to build offline jigs or recalibrate the machine.
The difference between a pneumatic cylinder and a servo motor is the difference between "hitting a wall" and "moving to a coordinate." Pneumatic systems rely on the cutting head slamming against a mechanical stop to set the angle. Over time, these stops wear down, debris accumulates, and accuracy drifts. A Servo Driven 3-Axis CNC Double Mitre Saw operates on a closed-loop feedback system.
The servo motor moves the head to a precise digital degree, and the encoder verifies that position thousands of times per second. This ensures the head does not drift, even after thousands of cycles. Furthermore, dual-head cutting ensures the profile is clamped once. This maintains a single reference face throughout the cut. This eliminates the "cupped board" error common in single-head flip-over methods, where flipping a slightly bent profile causes the cut angle to deviate from the true design.
Perhaps the biggest advantage of 3-axis automation is the removal of paper cut lists. These machines integrate directly with ERP systems or window design software like Orgadata or Klaes. Operators no longer type in dimensions; they simply scan a barcode or select a batch file.
Direct Integration: .CSV or .XML cut lists are pushed directly from the office to the machine.
Barcoding: The saw prints a label for every finished piece immediately after cutting. This label contains tracking info for downstream assembly and glazing.
Optimization: Dynamic nesting software analyzes the cut list against standard stock lengths (e.g., 6m bars). It calculates the most efficient cutting order to maximize yield, often reducing offcut waste to manageable levels that manual calculation could never achieve.
While the benefits are transformative, they come with specific trade-offs. It is crucial to evaluate these risks to ensure your facility is ready for this level of technology.
The financial barrier to entry is the most obvious hurdle. The upfront CapEx for a 3-axis CNC unit is significantly higher than that of pneumatic semi-automatic saws. However, the cost analysis must extend beyond the purchase price. Maintenance on these machines requires a different approach.
You are moving from maintaining air hoses and simple switches to maintaining servo drives, high-resolution encoders, and PLCs. While these components are robust, when they do fail, they require specialized technicians. General maintenance staff may not have the diagnostic tools or knowledge to repair a servo fault, potentially leading to longer downtime if you do not have a service contract or a skilled in-house technician.
Automation does not eliminate the need for skilled labor; it changes the type of skill required. A manual saw operator needs to know how to read a tape measure. A CNC saw operator needs to be comfortable with computer interfaces, file management, and basic troubleshooting.
Diagnosing a problem becomes a digital task. If a head isn't tilting correctly, the operator needs to check the HMI (Human-Machine Interface) for error codes rather than looking for a physical obstruction. This creates a training gap that management must bridge. If your workforce is resistant to technology, the implementation curve can be steep.
These machines are large industrial installations. The automated carriage traverse typically requires a footprint length of 8 to 10 meters to accommodate standard 6-meter profiles effectively. You must also consider profile limitations. The blade diameter—usually 450mm, 500mm, or 600mm—dictates the maximum height and width of the profile you can cut. Unlike a radial arm saw where you can slide the blade across a wide board, a double mitre saw has a fixed cutting envelope. Ensuring your profile suite fits within the blade’s cutting diagram is a critical pre-purchase check.
Understanding the mechanical differences helps clarify why the price gap exists and where the efficiency comes from.
| Feature | Standard Semi-Auto Saw | 3-Axis CNC Saw |
|---|---|---|
| Movement Architecture | Manual/Motorized length; Pneumatic tilt (hard stops). | Fully interpolated servo movement for Length + Angle L + Angle R. |
| Setup Time | High. Requires manual adjustment for any angle other than 45°/90°. | Zero. Angles adjust instantly via software while loading material. |
| Accuracy Source | Tape measure, visual stops, mechanical limits. | Magnetic strip linear encoders and absolute rotary encoders. |
| Best For | Large batches of identical frames. | High-mix, custom orders, just-in-time production. |
The value of a Multi Function 3-Axis CNC Double Mitre Saw becomes undeniable in "Scenario B" production environments. In Scenario A (Batching), where you cut 500 identical pieces, a standard saw performs adequately once set up. However, in Scenario B (Just-in-Time), you might be cutting a custom window order involving 20 different lengths and various angles.
In this high-mix scenario, the CNC saw is 40-60% faster. The operator simply loads the bar, and the machine positions the length and angles simultaneously. There is zero downtime between cuts for calibration. This allows manufacturers to move away from large inventory batches and towards efficient, order-based production.
Standard saws rely on a tape measure or a simple motorized display that can suffer from backlash. 3-Axis CNC saws utilize magnetic strip linear encoders running the full length of the machine bed. These encoders provide real-time position feedback to the controller, compensating for thermal expansion or minor mechanical play. This ensures that a 3000mm profile cut in the morning matches a 3000mm profile cut in the afternoon to within 0.1mm.
Not all 3-axis saws are built the same. When vetting a 3-Axis CNC Double Mitre Saw Manufacturer, focus on three specific technical areas.
The direction the blade moves determines what profiles you can cut effectively.
Back-cut (Radial): The blade moves from the back of the machine toward the front. This design is superior for tall, narrow profiles like curtain walls. It typically allows for a wider range of angles, including tilting both inwards and outwards.
Up-cut: The blade rises from beneath the table. This is best for wide, flat profiles like sliding door tracks. It is generally safer because the blade retracts inside the cabinet, but the tilting mechanism is often restricted to inwards angles only due to the table geometry.
Hardware is useless without good software. Avoid manufacturers who use proprietary "Black Box" software that cannot communicate with the outside world. Look for standard industrial Windows-based controllers or G-code compatible systems. The critical test is the ease of importing cut lists. Can the machine read files exported directly from industry-standard software like Orgadata, Klaes, or generic Excel/CSV files? If the data import process is manual or clunky, you lose the primary efficiency gain of the machine.
A High End 3-Axis CNC Double Mitre Saw operates at high speeds with massive torque. Safety is non-negotiable. Look for full enclosure requirements that provide noise reduction and chip containment. The machine should have interlocks that prevent operation if the doors are open. Additionally, advanced sensors should detect profile clamping pressure; if the material isn't seated correctly or the clamp fails, the saw should automatically pause to prevent a crash or a projectile hazard.
Justifying the cost of a 3-axis saw requires looking at three specific metrics: yield, labor, and error costs.
Manual cutting often results in 15-20% waste because operators maximize speed over yield. They cut pieces in the order of the list rather than the order that fits the bar. CNC saws use optimization software to nest different lengths from different orders into a single bar. This typically reduces scrap rates to 3-5%. On high-cost materials like thermal break aluminum, saving 10-15% on your raw material bill can cover the machine lease payments entirely.
Handling long profiles on a manual machine often requires two people—one to operate the saw and one to support the material. An automated CNC saw with a proper roller conveyor and feeder system can be operated by a single person. Furthermore, the accuracy of the cuts reduces downstream labor. Assembly workers spend less time filing down oversized cuts or forcing joints together. The parts fit right the first time.
Consider the cost of cutting a complex curtain wall mullion at the wrong angle. You lose the expensive profile, you lose the labor time, and you disrupt the production schedule to re-order material. Manual measuring inevitably leads to human error. A barcode-scanned CNC process is failsafe. The machine knows exactly what it is cutting and how to cut it, virtually eliminating the "mistake cost" from your balance sheet.
A 3-Axis CNC Double Mitre Saw is more than just a faster saw; it is the industry standard for scalability. It transforms cutting from a manual craft dependent on individual operator skill into a predictable, digital manufacturing process.
If your shop processes varying angles daily and handles high-cost materials like aluminum or thermal break profiles, the ROI based on material savings and speed is typically achieved within 12 to 18 months. For shops strictly producing simple 90° box frames in low volumes, a standard double mitre saw may still suffice.
To move forward, we recommend auditing your current scrap rates and measuring your average changeover times. Once you have this data, you will be ready to have a serious conversation with a 3-Axis CNC Double Mitre Saw Manufacturer about configuring a machine that fits your specific production mix.
A: A 3-Axis CNC Double Mitre Saw is a dedicated machine for cutting profiles to length with precise angles (Length + Left Angle + Right Angle). It is built for speed and high-volume cut-off operations. A 5-axis machining center is designed for milling, drilling, and shaping complex 3D parts. While a machining center can cut parts, it is generally much slower and less efficient for pure cut-off tasks compared to a double mitre saw.
A: Yes. With the correct blade selection (tooth geometry and carbide grade), RPM settings, and lubrication systems (typically mist spray), these saws can effectively handle aluminum, PVC, fiberglass pultrusions, and other composite materials. The rigid clamping and precise feed rates of CNC systems actually improve the cut quality on composites by reducing vibration.
A: Yes. High End 3-Axis CNC Double Mitre Saws typically require 3-phase industrial power (usually 400V or 480V depending on your region). This is necessary to drive the large saw motors (often 3kW–6kW each) and the servo drive systems consistently without voltage drops that could affect precision.
A: Pneumatic cylinders operate by slamming into hard mechanical stops to set an angle. Over time, these stops wear out, causing the angle to drift and requiring frequent recalibration. Servo motors move to a specific digital position and hold it electronically using closed-loop feedback. This provides infinite adjustability (any angle, not just fixed stops) and maintains long-term precision without mechanical wear.
