5-Axis Compound Angle CNC Double Mitre Saw

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

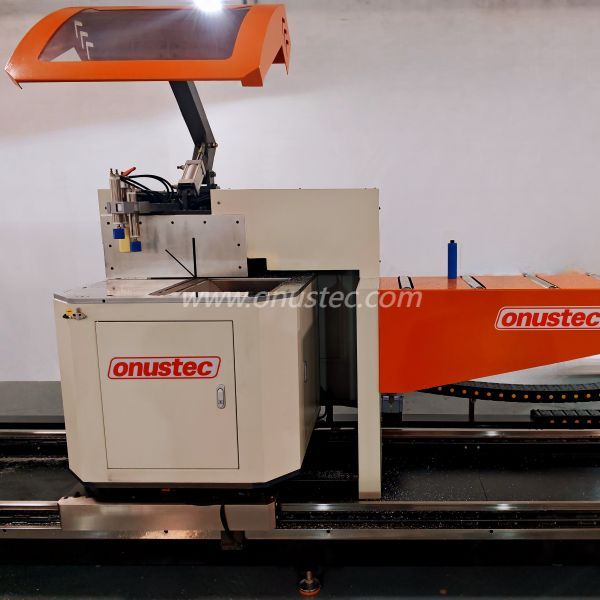

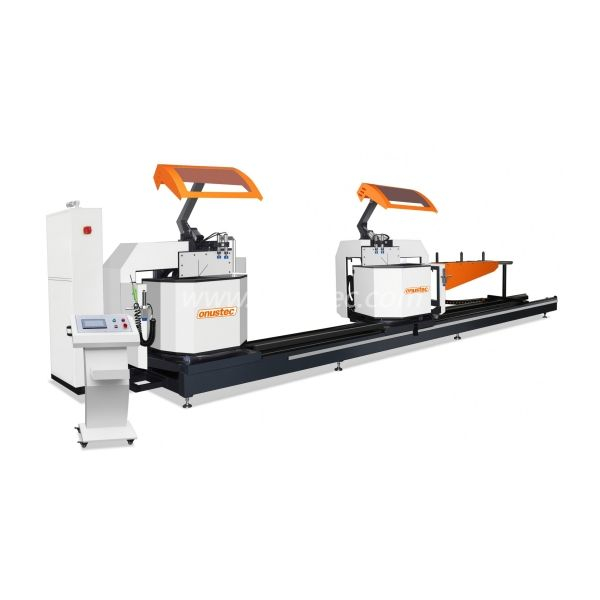

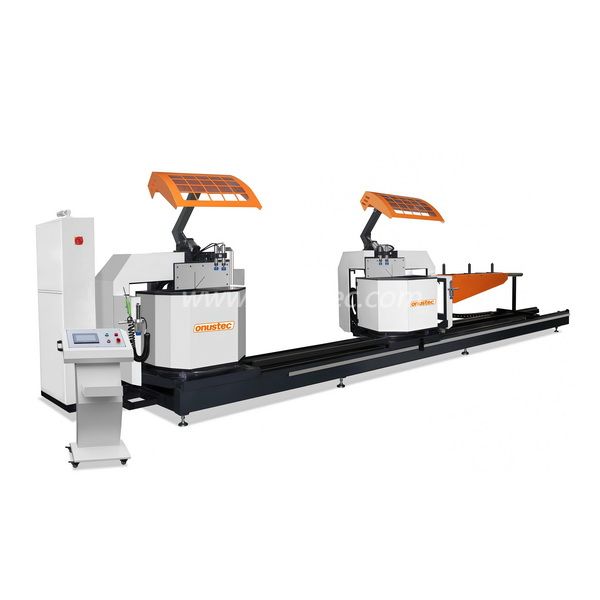

This 5-axis Compound Angle CNC Double Mitre Saw is applicable for Compound Angle Cutting Aluminium Metal Profiles, it adopts Creative German Design Concepts and Production Technics in accordance with European High Standards and continuous optimization.

It adopts easy operated Man-Machine Conversation Interface,Casting Machine Base, as well as Famous High Precision components,specially the Powerful Professional Assembly Engineering Technics that Well Trained by German Engineers,which ensures the wide processing range for large and complicated profiles and High Precision for High End Processing Requirements.
Availability:
Quantity:

Features

· 5-axis cnc double mitre saw

· The reliable German principle "Cutting from below”

· High efficient cuts possible for all variant cutting

· Ideal machine for high-volume series production for compound angle cutting

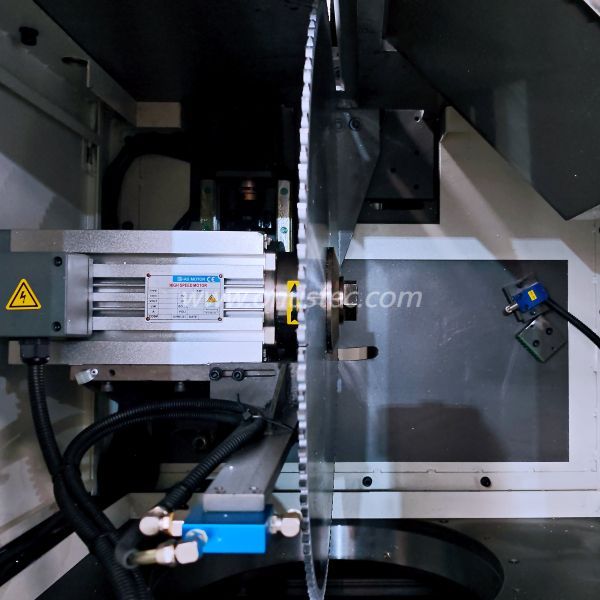

· A large saw blade diameter and optimal use of the saw blade offer an ideal cutting capacity for all cutting variations

· Automatic tilting angle from 90°to 45°meetings your variant cutting angle requirements

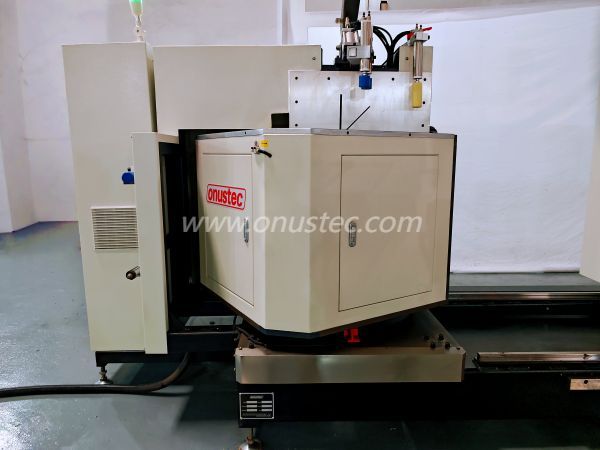

· Large pivoting angle from 22.5°to 135°meets your variant complicated cutting requirements

· Equipped high precision linear guide and servo driving system as standard

· Liquid mist diffuser coolant system for aluminium machining

· Equipped with saw blades and safety hoods as standard

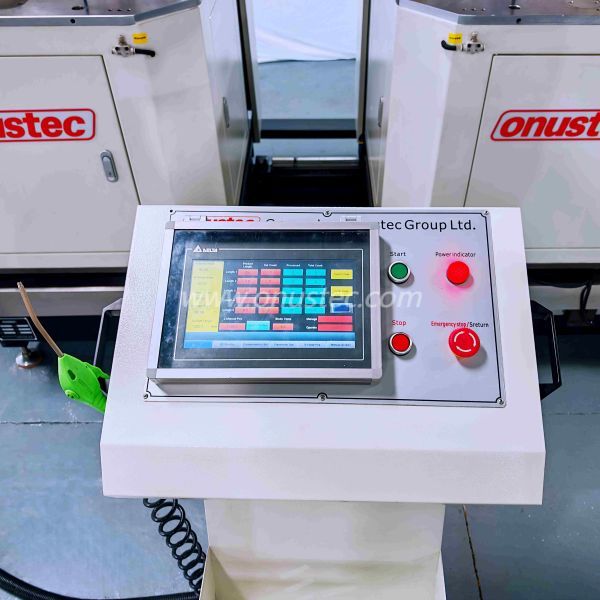

· Equipped with CNC system and touching screen as standard

· Equipped 5 accurate servo motors and drivers to ensure your efficient production

· Horizontal and vertical pneumatic material clamping units

· 2x4.0KW motors for fast and thick profile bar cutting

· 600mm dia. blades provide bigger cutting range

· Optimized protection shields as standard

· Hydro-pneumatic feeding as standard

Cutting length variants

· 4,500 mm

· 6,000 mm

· 7,500 mm

· Additional lengths on request

Options

· Saw blades

· Safety fence

· Label printer

· Roller conveyor

· 650mm blades

· Material clamping units

· Mobile workpiece support

· Super short cutting function

· Stationary and/or travelling roller conveyor

· Additional software of optimized cutting function

· High performance cutting fluid for aluminium machining


Model No.

OYT-G606

Cutting Length

460-6000mm

Cutting Width

270mm

Cutting Height

180mm

Table Rotation Angle

22.5-135° (Servo Driven)

Blade Swing Angle

45-90° (Servo Driven)

Repositioning Accuracy

±0.1mm

Blade Diameter

600mm×2(650mmx2)

Cutting Motor

4.0KW×2

Pivoting Servo Motor

750Wx2

Blades Tilting Servo Motor

400Wx2

Length Servo Motor

750Wx1

5 Brake Servo Motors

750W×3/400W×2

Total Power

11.0KW

Voltage

3Phase,380V/415/220,50Hz or Custom-made

Working Air Pressure

0.6Mpa-0.8Mpa

Machine Dimension

7500x1600x1600mm

Machine Weight

3300kg
