Features

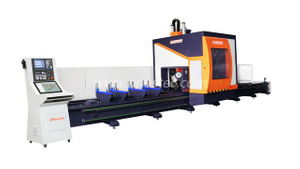

· 5-axis profile machining center
· Designed for economical and efficient machining of aluminium and thin-walled steel profiles
· All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces
· 6-side machining. From below with an angle head (optional)
· Equipped with 8 tools+1 big saw blade alongside umbrella tool magazine allows fast machining and short tool changing time,thus optimizing the machining cycles
· Auto clamp avoidance system improves the efficiency and safety
· Operator cam software with graphic 3D display of workpieces(optional)
· High-precision grinding stable and durable gear rack and pinion,ball screw,linear guide ensures smooth and accurate machining.
· Creative dual industrial operation system and windows operation system for convenient and more option operation
· Electronic light curtain protection for operator’s safety
· Two separate working zones enable machining in shuttle operation (optional)
· 18.5" panel PC, USB ports and network connection
· Automatic Central Oil Lubrication System
· 5-axis controller
· camQuix (optional)
Options
· Shuttle operation for working on two sides
· Angle routing head for machining from below
· Automatic tool sensor and length measurement
· Auto Chips conveyor system
· Barcode scanner
· Label printer
· Tool holders
· Collet chuck
· Saw head
· Tools
