CNC machined aluminum represents a highly strategic manufacturing material choice. It perfectly balances structural strength, low weight, and rapid cycle-time efficiency. Modern engineers rely on this metal to push performance boundaries across aerospace, automotive, and consumer electronics industries.
Transitioning a part from low-volume prototyping to production-scale manufacturing introduces significant challenges. Teams must optimize material removal rates while strictly controlling dimensional stability. Without proper planning, minor design inefficiencies quickly multiply into massive budget overruns. Machining raw billets into finished parts demands precision.
This guide bridges the gap between basic metallurgical properties and bottom-of-funnel decision-making. You will learn how to match specific alloy grades to your exact mechanical requirements. We also explore equipment strategies and vendor vetting protocols to guarantee your production success. Let us explore how you can optimize your next manufacturing run.
Engineers face a constant battle when selecting raw materials for new product lines. You must weigh raw material prices against the time required to cut, drill, and mill those materials. To fully grasp what is cnc machined aluminum from a commercial standpoint, we must evaluate its economic advantages on the shop floor.
Compare aluminum against common alternatives like stainless steel, titanium, and engineered plastics. Steel offers incredible strength. However, cutting steel requires immense spindle torque and significantly slower feed rates. Titanium delivers superior heat resistance but rapidly degrades cutting tools. Engineered plastics lack the structural rigidity required for high-stress mechanical assemblies.
Aluminum solves these compounding problems. It costs slightly more per pound than mild steel. Yet, manufacturers recover this cost through dramatically shorter machining cycles. Faster cycle times directly reduce the hourly machine rates applied to your final invoice. Aluminum offers the ideal middle ground for production-scale manufacturing.
Aluminum possesses a naturally soft and highly machinable molecular structure. This characteristic allows operators to achieve massive material removal rates (MRR). Modern machining centers can spin cutting tools at 15,000 RPM or higher when processing aluminum billets.
These elevated speeds reduce overall spindle time per part. Consequently, you spend less money on labor and machine overhead. Furthermore, cutting aluminum exerts minimal stress on carbide tools. Tool life extends significantly. Operators rarely need to halt production to swap out broken end mills. Continuous production flow maximizes your manufacturing ROI.
Evaluating the success of your machined components requires clear metrics. Track these specific KPIs during your pilot production runs:
Specifying generic "aluminum" on a CAD drawing guarantees inconsistent results. The aluminum family includes distinct alloy series categorized by their primary alloying elements. Selecting the correct grade prevents catastrophic part failure in the field.
Manufacturers consider 6061-T6 the undisputed workhorse of the industry. It contains magnesium and silicon. This combination produces an extremely versatile material. 6061-T6 excels in structural components, automotive brackets, and general factory fixturing.
This alloy accepts standard welding processes beautifully. It also responds perfectly to anodizing treatments. However, 6061-T6 does present trade-offs. It yields lower tensile strength than dedicated aerospace grades. You should not specify this material for highly stressed aviation components.
When failure is not an option, engineers turn to 7075-T6. Zinc acts as the primary alloying element here. This formulation delivers strength comparable to many structural steels. Aerospace frames, military weaponry, and high-stress robotics rely heavily on 7075-T6.
You must carefully consider its drawbacks. 7075-T6 is notoriously difficult to weld. It also commands a significantly higher raw material price than 6000-series alloys. Additionally, its high zinc content makes it slightly more prone to corrosion in harsh marine environments.
Specialty applications require specific metallurgical profiles. Consider these alternative options for niche manufacturing requirements:
Your decision lens must focus on the operational environment. Always match the alloy to your final finishing requirements. Anodizing compatibility varies wildly across these different material series.
Table 1: Quick Reference Guide for Aluminum Alloys
| Alloy Grade | Primary Alloying Element | Best Applications | Machinability Rating |
|---|---|---|---|
| 6061-T6 | Magnesium / Silicon | Automotive, Fixtures, General Use | Excellent |
| 7075-T6 | Zinc | Aerospace, Military, High-Stress | Good |
| 2024-T3 | Copper | High-Fatigue Aviation Parts | Fair |
| 5052-H32 | Magnesium | Sheet Metal, Marine Housings | Fair (Gummy) |
Choosing the correct alloy represents only half the battle. You must assign your designs to the proper machinery. A mismatch between part geometry and machine architecture destroys your production efficiency.
Traditional 3-axis and 5-axis vertical machining centers (VMCs) excel at cutting solid blocks. They handle complex, multidimensional geometries perfectly. However, they struggle with extremely long, slender components.
If your project involves long extruded geometries like solar panel frames, transit rails, or linear guide tracks, you need specialized equipment. Standard mills require multiple setups to machine a 10-foot long rail. Operators must slide the part through the machine doors repeatedly. Aluminium Profile Machines solve this problem. They feature extended X-axis travel beds designed specifically for long extrusions. This eliminates secondary setups entirely.

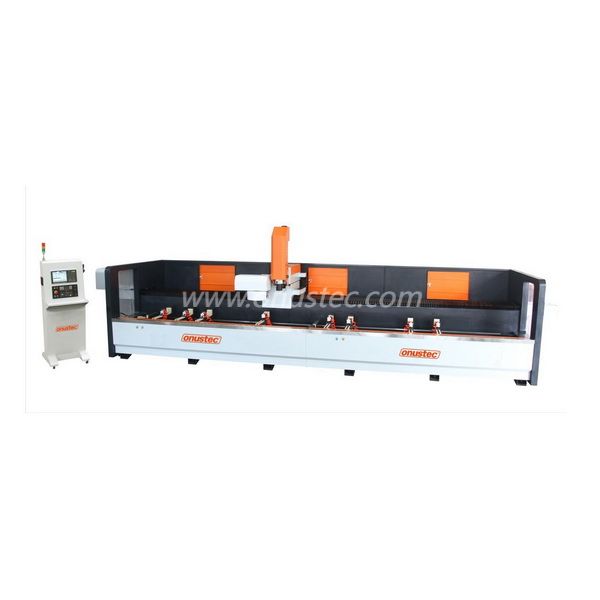

Commercial viability demands speed. A 3-Axis Fast Aluminium CNC Profile Machining Center utilizes high-RPM spindles engineered specifically for light-duty, high-speed cutting. Unlike heavy iron mills built for steel, these profile centers accelerate rapidly.
They provide massive scalability. A dedicated profile machining center drastically reduces both setup times and cycle times for linear parts. You clamp the extrusion once. The spindle travels the entire length of the raw material, drilling and slotting in a single pass. This specialized architecture outpaces traditional VMCs by a wide margin.
Cylindrical parts demand lathe processing. Standard turning centers spin the raw aluminum rod while a stationary tool carves the profile. If your cylindrical part requires cross-drilled holes or flat milled surfaces, specify a mill-turn machine.
Mill-turn machines utilize live tooling. The lathe turret holds miniature milling spindles. This capability allows operators to turn, drill, and mill the aluminum part in one single operation. Minimizing manual part handling reduces labor costs and prevents cumulative tolerance stacking.
Experienced procurement teams know theory rarely matches reality on the shop floor. Machining aluminum involves distinct physical risks. You must proactively manage thermal dynamics and cutting tool interactions.
Risk: Aluminum possesses a notably high coefficient of thermal expansion. As the cutting tool generates friction, the part absorbs heat. The aluminum expands physically. If the machine cuts the part to its final dimension while hot, the component will shrink as it cools. This dimensional shift ruins tight-tolerance parts.
Mitigation: Evaluate your vendors heavily on their coolant strategies. High-pressure flood coolant prevents heat accumulation. Furthermore, experienced shops separate roughing and finishing stages. They remove the bulk material, allow the part to cool, and then perform a final light skimming pass. Complex aerospace parts often require intermediate thermal stress-relief baking.
Common Mistake: Never allow operators to run aggressive roughing paths dry. Heat distortion is irreversible in thin-walled aluminum enclosures.
Risk: Aluminum melts at relatively low temperatures. High friction causes tiny particles of aluminum to melt and weld themselves directly to the cutting tool. We call this phenomenon Built-Up Edge (BUE). Once BUE forms, the tool loses its sharp cutting edge. It begins smearing the metal rather than cutting it, destroying your surface finish.
Mitigation: Ensure your machining partner uses appropriate cutters. They must utilize polished, uncoated carbide tools. The polished flutes prevent aluminum from adhering. For extremely high-volume production, require DLC (Diamond-Like Carbon) coated tools. DLC coatings provide supreme lubricity and eliminate BUE completely.
Over-tolerancing drives production costs astronomically high. Many engineers unnecessarily apply ultra-tight aerospace tolerances to non-critical cosmetic parts.
Define realistic baseline tolerances. A standard CNC mill easily holds +/- 0.005 inches on standard aluminum features. Standard "as-machined" surface finishes typically hover around 63 Ra. Do not specify a 16 Ra mirror finish or a +/- 0.001 inch tolerance unless the mechanical assembly absolutely requires it.
Your designs are only as good as the partner executing them. Vetting a CNC machining vendor requires looking past their marketing brochures. You must audit their quality systems and post-processing capabilities.
Regulated industries tolerate zero defects. If you source aerospace, defense, or medical components, you must require strict certifications. Demand proof of AS9100 or ISO 9001:2015 registration.
Counterfeit metals plague the global supply chain. Substandard aluminum lacks the structural integrity required for safe operation. Demand absolute transparency regarding Material Test Reports (MTRs). Your vendor must provide a certified MTR tracing the aluminum billet back to the original foundry. This prevents low-grade alloy substitution.
Bare aluminum scratches easily. It also oxidizes over time. Most production parts require secondary protective coatings. You should prioritize vendors offering integrated post-processing capabilities.
Evaluate their in-house or managed network for surface finishing. Common requirements include:
Consolidating machining and finishing under one vendor drastically reduces your supply chain logistics.
A vendor who excels at prototyping might struggle with volume manufacturing. You need a transition framework. Low-volume prototypes carry high per-part costs because setup time dominates the equation.
As you transition to high-volume production, the focus shifts entirely to cycle time reduction. Look for vendors utilizing pallet-pool automation. Automated pallet changers load fresh aluminum billets into the machine while the spindle continuously cuts another part. This lights-out manufacturing capability slashes labor rates and guarantees consistent output schedules.
A: 6061-T6 represents the most cost-effective choice for general CNC machining. It perfectly balances raw material affordability, widespread global availability, and excellent machinability. It reduces spindle time significantly compared to stronger aerospace alloys while providing adequate structural integrity for most commercial applications.
A: Yes, but weldability depends entirely on the specific alloy grade. You can easily weld 6061 and 5052 alloys using standard TIG or MIG processes. Conversely, you should generally avoid welding 7075 aluminum, as its high zinc content causes severe micro-cracking and loss of structural strength during thermal cycling.
A: You can typically expect a standard "as-machined" surface finish between 63 Ra and 125 Ra. This finish displays visible, uniform tool marks. If your part requires cosmetic perfection or O-ring sealing surfaces, you must specify secondary finishing processes like bead blasting or high-speed contour skimming to achieve 32 Ra or better.
A: Aluminium Profile Machines provide massive efficiency gains for long, extruded parts. Standard VMCs possess limited X-axis travel beds, forcing operators to reposition long extrusions multiple times. Profile machines feature specialized long beds and high-RPM spindles. They machine the entire length of the extrusion in one continuous, automated setup.
