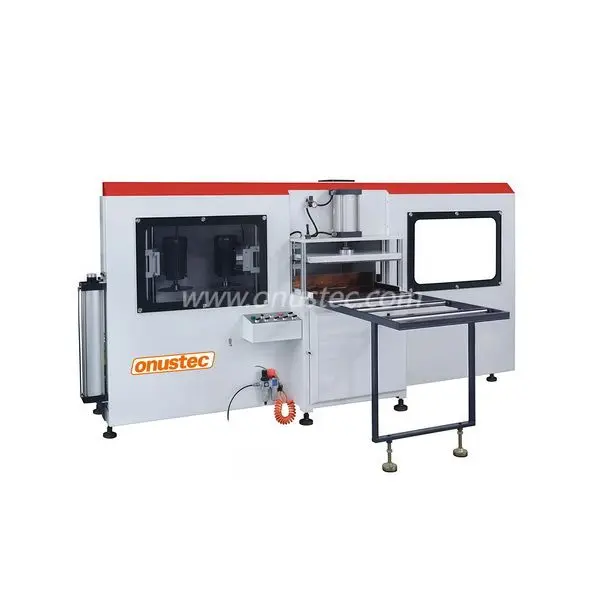

In the competitive landscape of modern manufacturing, equipment versatility often dictates profitability. An End Milling Machine is not merely a tool for material removal; it serves as the critical "Swiss Army Knife" for CNC machine shops aiming to maximize output per square foot. While processes like drilling are limited to vertical penetration and face milling is restricted to horizontal flattening, end milling offers a dynamic range of cutting capabilities that few other machining operations can match.
The ability to cut axially, radially, and simultaneously across multiple axes transforms how engineers approach part design and production flow. By eliminating the need for multiple specialized machines, end milling streamlines the transition from raw stock to finished geometry. This article evaluates the technical and economic advantages of this process, analyzing how capabilities—ranging from standard 3-axis work to sophisticated 6-Axis End Milling Machine technology—drive ROI through superior precision, cycle-time reduction, and operational scalability.
Versatility: Capable of executing slots, pockets, contours, and complex 3D profiles in a single setup.
Precision: Achieves superior surface finishes (Ra 0.8–6.3µm) compared to roughing operations.
Economic Efficiency: Reduces secondary setups by combining roughing and finishing capabilities.
Scalability: Advances in 5-Axis CNC End Milling Machines allow for single-setup machining of complex aerospace and medical components.
The primary justification for investing in high-end milling technology lies in its multi-function nature. Unlike dedicated drilling stations or surface grinders, an end mill operates with cutting edges on both its periphery and its face. This dual-geometry design allows the tool to engage with the workpiece in virtually any direction, unlocking a level of contouring capability that is essential for modern component fabrication.
The true power of end milling is revealed during simultaneous axial and radial cutting. A standard cutter can plunge directly into the material like a drill, then immediately travel laterally to carve a slot or pocket without retracting. This continuous motion capability allows operators to execute ramping maneuvers, where the tool enters the material at a gradual angle, reducing spindle load and preventing tool breakage.
Furthermore, tracer milling actions enable the machine to follow complex 2D and 3D paths. Whether you are machining a helical groove or a freeform surface, the tool adapts to the geometry requirements without necessitating a tool change. This flexibility drastically reduces non-cutting time, which is often the silent killer of shop floor efficiency.
Operational efficiency in a machine shop is often measured by how few times a technician touches the part. Multi Function End Milling Machine platforms are designed to eliminate the logistical bottleneck of moving workpieces between stations. In a traditional workflow, a part might start at a drill press for holes, move to a band saw for roughing, and finish on a surface miller.
End milling consolidates these steps. Consider the contrast with drilling:
Drilling: strictly creates cylindrical holes. It cannot expand that hole laterally or create a flat bottom.
End Milling: creates the initial hole, expands it into a kidney-bean slot, and finishes the floor to a precise flatness—all in one sequence.
This consolidation minimizes the "stack-up error" that occurs every time a part is unclamped and re-fixtured, thereby improving overall part consistency.
Versatility also extends to material science. The same machine architecture can adapt to vastly different substrates, provided the tooling and parameters are correct. For soft materials like aluminum 6061, operators can utilize high-RPM strategies with 2-flute cutters to maximize chip evacuation. Conversely, when machining aerospace-grade Titanium or Inconel, the strategy shifts to variable helix end mills and specialized coatings to manage heat.
However, this adaptability relies heavily on the machine's construction. When evaluating an End Milling Machine Manufacturer, decision-makers must prioritize structural stiffness. A machine lacking rigidity will vibrate when cutting hard metals, negating the advantages of the process.
While removing material quickly is important, the ability to leave a finished surface that meets strict quality assurance metrics is what distinguishes professional machining. End milling excels in delivering high-precision outcomes that often eliminate the need for secondary grinding or polishing operations.
To understand the quality advantage, we must look at the data. Face milling is excellent for generating flat reference surfaces quickly, typically achieving a surface roughness average (Ra) of 0.8–1.6µm. However, face mills are generally incapable of addressing vertical walls or intricate details.
End milling fills this gap. With proper finishing passes—utilizing high-helix tools and strategic coolant application—end mills can achieve sidewall finishes in the range of Ra 0.29–0.95µm. This level of smoothness is often required for sealing surfaces in hydraulic components or mating parts in high-precision assemblies. By achieving this finish on the primary machine, shops reduce lead times and labor costs associated with manual deburring or polishing.
Mold and die manufacturing frequently requires the creation of deep, narrow pockets that are inaccessible to other cutting tools. Long-reach end mills allow machinists to excavate these features with high fidelity. However, physics presents a challenge: as the tool length increases, the risk of deflection (bending) increases.
Deflection leads to "chatter," a regenerative vibration that leaves unsightly marks on the part and ruins dimensional accuracy. Modern CNC systems mitigate this through rigid spindle designs and dynamic toolpath strategies. By maintaining constant tool engagement angles, the machine ensures that cutting forces are directed axially rather than radially, stabilizing the cut even at extended depths.
A specific advantage of the square end mill is its ability to create perfect 90-degree shoulders. Face mills, due to their lead angle and insert geometry, often leave a radius or a ramp at the bottom of a shoulder. An end mill produces a sharp, perpendicular corner, which is a non-negotiable requirement for many mechanical interfaces, such as keyways or bearing seats. This ability to hold tight tolerances on vertical walls ensures that parts fit together correctly during assembly without modification.
Investment decisions are ultimately driven by the Total Cost of Ownership (TCO) and the potential for operational efficiency. End milling contributes to a healthy ROI by optimizing both cycle times and consumable costs.
The introduction of High-Efficiency Milling (HEM) strategies has revolutionized cycle times. HEM involves taking a large axial depth of cut (using the full length of the cutting flute) while taking a very small radial step-over. This technique spreads the wear evenly across the tool and allows for significantly higher feed rates.
Furthermore, the distinction between roughing and finishing is handled seamlessly. A shop can use a "roughing" end mill with serrated edges to hog out material rapidly, breaking chips into manageable pieces. Without moving the part, the tool changer swaps to a high-flute-count finishing mill to perfect the surface. This continuous workflow prevents machine downtime and maximizes spindle utilization.
Consumable tooling is a major recurring expense, but smart selection can mitigate this.
Double-End Mills: These tools feature cutting geometry on both ends of the shank. Once one end is worn or chipped, the operator simply flips the tool in the holder, effectively doubling the tool's lifespan and halving the inventory requirement.
Replaceable Heads: For larger diameter applications, solid carbide end mills become prohibitively expensive. Manufacturers now offer steel shanks with replaceable carbide heads. When the edges dull, you replace only the tip, retaining the shank. This significantly lowers long-term costs compared to discarding large solid carbide tools.
Scrap is the enemy of profit. In fabrication methods like casting or manual milling, human error or process inconsistency often leads to scrapped parts. The inherent precision of CNC end milling, combined with probing cycles that verify part position before cutting, drastically reduces waste. When machining high-value materials like aerospace titanium, a 1% reduction in scrap rate can translate to thousands of dollars in annual savings.
As part complexity increases, the limitations of standard 3-axis machining become apparent. This is where multi-axis integration transforms the manufacturing capability of a facility.
Moving from 3-axis to a 5-Axis CNC End Milling Machine creates an immediate competitive advantage. In a 3-axis setup, the tool approaches from the top (Z-axis). If a part has features on the side, it must be manually rotated and re-clamped. Every re-clamping introduces error.
A 5-Axis End Milling Machine allows the cutting tool to access five sides of a prismatic part in a single operation. The table or the spindle head rotates to present the workpiece to the cutter. The outcome is a drastic reduction in fixture costs—you no longer need custom jigs for every angle—and the elimination of cumulative errors caused by re-fixturing.
While less common in general job shops, the 6-Axis End Milling Machine represents the frontier of complex geometry handling. These systems often integrate robotic articulation or combine turning and milling centers with an additional axis of movement. They are particularly valuable for parts with severe undercuts or internal features that a rigid 5-axis setup cannot reach. Though specialized, they offer a solution for "impossible" geometries found in the energy and defense sectors.
Advanced axis integration is critical for 3D surfacing. Using ball nose end mills, these machines can sweep across curved surfaces to create turbine blades, impellers, or injection molds. The tool continuously orients itself to maintain the optimal cutting angle relative to the surface normal. While this introduces an "Implementation Risk" regarding the need for higher CAM programming skills, the ability to produce these high-value components in-house justifies the training investment.
Choosing the correct equipment and tooling is a balancing act between technical requirements and budget. Below is a framework to guide buyers through the evaluation process.
Buyers must balance spindle characteristics with their primary material mix. If the shop primarily cuts aluminum, a high-speed spindle (12,000+ RPM) with lower torque is ideal for finishing speed. However, if the workload involves steel or hardened alloys, high torque at low RPM is non-negotiable. A machine that tries to do both often compromises on rigidity. High-end machines utilize heavier castings to dampen vibration, which is critical when pushing end mills to their limit.
When vetting a supplier, specific technical questions reveal the quality of the machine. Important inquiries for an End Milling Machine Manufacturer include:
Thermal Compensation: Does the machine actively monitor and adjust for thermal expansion in the spindle? This is crucial for long cycle times where heat buildup can shift the tool center point.
Chip Evacuation Systems: Deep pocket end milling generates massive amounts of chips. Does the machine have high-pressure through-spindle coolant or adequate augers to prevent chip recutting?
Selecting the specific end mill is just as important as selecting the machine. Use this quick reference matrix:
| Material Class | Recommended Flutes | Primary Coating | Priority Goal |
|---|---|---|---|
| Soft (Aluminum, Wood, Plastic) | 2 or 3 Flutes | Uncoated / ZrN / DLC | Chip Clearance: Large flute valleys prevent clogging. |
| General Steel / Stainless | 4 or 5 Flutes | TiAlN / AlTiN | Core Strength: More flutes equal a thicker core for rigidity. |
| Hardened Steel / Titanium | 5+ Flutes (Variable Helix) | TiAlN / Silicon-based | Vibration Dampening: Variable helix breaks harmonics. |
Finally, adhere to the "0.5x Diameter" rule for slotting. When cutting a slot effectively full-width, the depth of cut generally should not exceed half the cutter's diameter unless advanced trochoidal toolpaths are used. Pushing a machine beyond this physical limit without specialized software leads to premature tool failure and spindle damage.
End milling is more than a machining process; it is a strategic capability that defines the throughput and quality potential of a manufacturing facility. While it demands a higher degree of operator skill and programming sophistication compared to simple drilling, the return on investment is substantial. The ability to produce finished, complex parts with tight tolerances in a single setup reduces overhead, minimizes scrap, and accelerates delivery times.
For shops looking to scale, the transition to multi-axis technology is the logical next step. Whether upgrading to a robust 3-axis system or investing in a 5-Axis End Milling Machine, the key is to align the machine's rigidity and axis count explicitly with your primary material mix. By doing so, manufacturers transform raw capability into sustainable competitive advantage.
A: The primary difference lies in the cutter geometry and application. Face milling uses cutters with edges primarily on the face (bottom) to create large, flat surfaces. End milling uses cutters with edges on both the periphery (side) and the face. This allows end mills to cut axially and radially, making them suitable for creating slots, pockets, contours, and intricate sidewall details that face mills cannot achieve.
A: A 5-axis machine can approach a workpiece from virtually any angle, allowing it to machine five sides of a part in a single setup. This eliminates the need to manually unclamping, rotate, and re-fixture the part for different operations. The result is a significant reduction in setup time and improved part accuracy, as cumulative errors from re-fixturing are removed.
A: Yes, center-cutting end mills can plunge vertically into material to create holes. They are effective for flat-bottomed holes or shallow counterbores. However, for deep holes (typically greater than 4 times the diameter), standard drill bits are more efficient because they are designed specifically to evacuate chips vertically and handle the axial forces better than end mills.
A: The choice involves a trade-off between cost, toughness, and performance. High-Speed Steel (HSS) is tougher and less brittle, making it suitable for manual machines or unstable setups, and it is cheaper. Solid Carbide is much more rigid and heat-resistant, allowing for significantly higher cutting speeds and better surface finishes. Carbide is the standard for modern CNC production environments despite its higher cost.
A: Chatter is caused by tool deflection and resonance during the cut. It often occurs when the tool sticks out too far (long overhang), the spindle speed matches the natural frequency of the assembly, or the tool lacks rigidity. Solutions include shortening the tool stick-out, adjusting RPM and feed rates to break the harmonic resonance, or using variable helix end mills that disrupt vibration patterns.
