Features

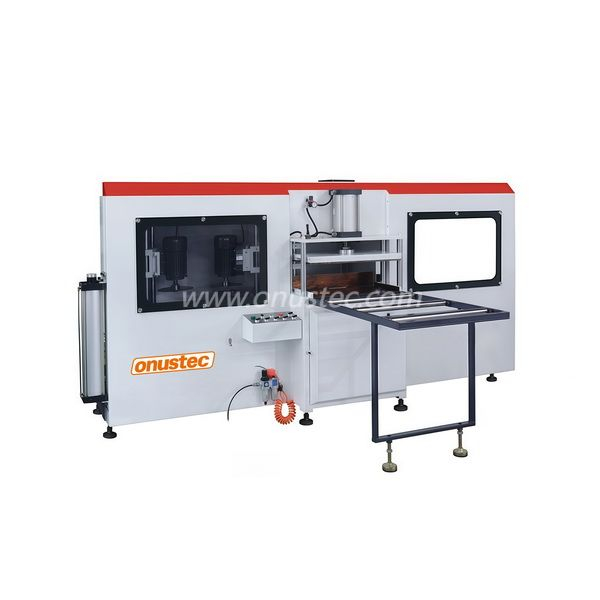

· 6-Axis Aluminum End Milling Machine
· Applicable for machining aluminium transoms and facade profiles
· Auto pneumatic cutting profiles to protect the profile surfaces and ensure accuracy while end milling cutting
· All adjustable 5 horizontal and 1 vertical blades for variable mullion and tenon milling
· Adjustable material stops for convenient milling depth adjustment
· Precise, smooth-action and low-wear recirculating ball guides
· Large vertical pneumatic material clamping provides flexibility and convenience
· Rotate handles for milling height and depth adjustment
· 800mm long roller conveyor for long profile support while machining
· Blades diameter ups to 355mm ensures max. 80mm milling depth
· Large cutting width ups to 400 mm
· Large cutting height ups to 300 mm
· Mist diffuser coolant system
· Automatic safety curtain
Options
· Digital display
· Cutting tools
· High performance cutting fluid
