In the world of precision machining, few terms are as frequently conflated as "milling cutter" and "end mill." While these terms are often swapped casually on the shop floor, they represent distinct concepts in manufacturing taxonomy. Treating them as synonyms is not just a semantic error; it is a technical oversight that can lead to sub-optimal toolpaths, increased cycle times, and even catastrophic damage to high-precision equipment. For senior engineers and procurement managers, understanding the distinction is critical for process optimization.
A "milling cutter" serves as the umbrella category for a vast array of rotary tools, whereas an "end mill" is a specific, highly versatile sub-type designed for unique axial and radial operations. Failing to distinguish between a general face mill and a specific end mill often results in inefficient material removal rates or poor surface finishes. This guide clarifies the hierarchical relationship, technical geometry differences, and selection strategies required to maximize ROI on your End Milling Machine.
Hierarchy: All end mills are milling cutters, but not all milling cutters are end mills. "Milling Cutter" is the umbrella term; "End Mill" is a specific sub-category designed for axial and radial cutting.
Geometry: End mills are distinguished by their ability to cut via the tip (plunging) and the side (profiling), whereas other cutters (like face mills) primarily utilize the face.
Machine Application: High-end 5-Axis End Milling Machines rely heavily on solid carbide end mills for complex contouring, whereas general milling cutters are used for bulk material removal.
Selection Rule: Use indexable milling cutters for large surface facing (>25mm); use solid end mills for slots, pockets, and precision contours.
To establish technical authority within a production environment, we must first clarify the taxonomy. The confusion stems from the fact that an end mill is, by definition, a milling cutter, but the reverse is not true.
A "milling cutter" is any rotary tool utilizing multiple cutting edges to remove material within a milling machine. This definition is broad by design. It encompasses over a dozen specific tool categories, including face mills, slab mills, fly cutters, gear cutters, and end mills. When a process sheet calls for a "milling cutter" without specification, it introduces ambiguity. Industry classification standards, such as those used in HLC Metal Parts taxonomy, treat this as the parent group for all subtractive rotary tooling.
An "end mill" defines a specific cutter architecture characterized by cutting teeth located on both the cylindrical body (peripheral) and the tool end (face). This dual-geometry allows the tool to cut axially (plunging into the material like a drill) and radially (cutting sideways like a saw) either simultaneously or sequentially. This unique capability makes it the primary tool for generating pockets, contours, and complex 3D shapes.
Within the end mill category, there is a further sub-distinction that often trips up operators:
Slot Drill: This is typically a 2-flute or 3-flute tool designed with "center-cutting" geometry. The cutting edges meet at the very center of the tip, allowing it to drill vertically into solid material before moving laterally to cut a slot.
Standard End Mill: often refers to 4, 6, or high-flute count tools. Historically, many of these were non-center cutting, meaning they required a pilot hole or a ramp entry because the center of the tool was solid. Today, they are prioritized for stiffness and surface finish rather than vertical entry.
The physical differences between general milling cutters and end mills dictate their performance. These geometric variances influence cutting forces, chip evacuation, and the structural integrity of the setup.
Face mills and general milling cutters primarily exert axial pressure. They create flat surfaces via a sweeping motion, directing forces up into the spindle. In contrast, end mills generate high radial pressure (side load). Because they cut with their sidewalls to create perpendicular walls and slots, they subject the machine spindle to significant lateral forces. This distinction is vital when programming an End Milling Machine; excessive side load on a machine not rated for it can cause chatter and deflection.
The "center-cutting" geometry is the hallmark of a true slotting end mill. It allows the tool to function like a drill for entry. Most slab mills, side milling cutters, or large face mills lack this feature entirely. If you attempt to plunge a non-center cutting tool into solid stock, the tool will fail immediately as the non-cutting center hits the material, acting like a solid rod rather than a cutter.
Standard indexable cutters often feature fixed insert angles dictated by the tool body. End mills, particularly solid carbide versions, offer variable helix options. A general-purpose end mill might have a 30° helix, while high-efficiency tools utilize 45° or 60° helix angles. Variable helix designs are critical for breaking up harmonic vibrations, allowing for deeper, faster cuts in difficult materials like titanium or Inconel.
End mills generally rely on a solid core (carbide, HSS, or powder metal) to resist deflection during deep side milling. The entire tool is the cutting interface. Conversely, larger milling cutters utilize a steel body with replaceable inserts. While the indexable body is rigid, it cannot match the vibration-dampening characteristics of a solid carbide core in deep, narrow pockets.
Your tooling choices must align with machine capabilities. The versatility of modern CNC equipment allows for seamless transitions between heavy roughing and intricate finishing, provided the correct cutter type is selected.
Modern vertical machining centers utilize automatic tool changers to swap between heavy-duty facing cutters for roughing and precision end mills for finishing. A common mistake is using an indexable cutter for a feature that requires the rigidity of a solid end mill, or conversely, wasting the life of an expensive solid carbide end mill on bulk surface facing where a face mill would be faster and cheaper.
As manufacturing complexity increases, the distinction becomes even more critical. In a 5-Axis End Milling Machine, the tool must maintain contact with the workpiece at varying angles. General milling cutters with flat bottoms are unsuitable for continuous 5-axis contouring of parts like impellers or turbine blades. Here, ball-nose and radius end mills are the only viable options. They allow the machine to interpolate complex curves without the "gouging" that a flat-bottom cutter would cause.

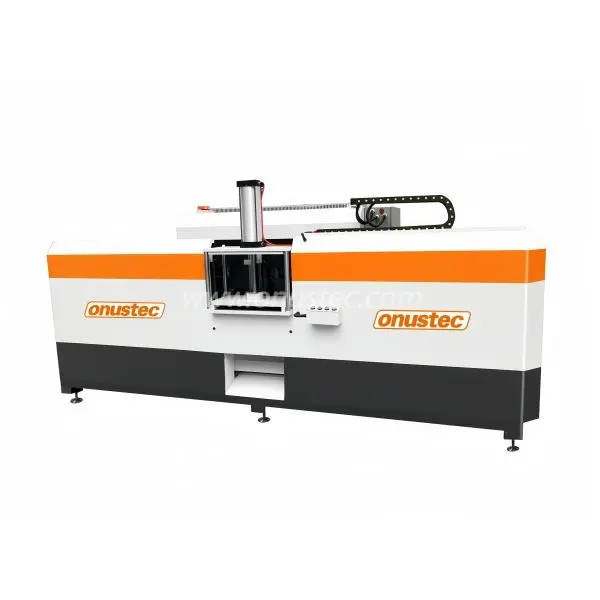

Furthermore, in a 6-Axis End Milling Machine or a "Done-in-One" mill-turn setup, specialized end mills play a pivotal role. These machines often require tools that can handle turning operations or off-center drilling. A Multi Function End Milling Machine benefits from hybrid tools, such as drill-mills, which blur the line between drilling and milling to save tool change time.
The interface between the machine and the tool differs significantly. General milling cutters (face mills) typically use shell mill arbors, which are robust but can have slight runout tolerance stack-ups. End mills require high-precision collets (ER, Hydraulic, or Shrink-fit) to grip the cylindrical shank. Minimizing runout is critical for end mills, especially at high RPMs, to prevent uneven wear on the flutes and ensure dimensional accuracy.
To assist process engineers in making data-driven decisions, we have compiled an application matrix. This framework helps determine when to deploy a general milling cutter versus a specific end mill.
| Scenario | Tool Choice | Primary Reason |
|---|---|---|
| A: Surface Flattening (Facing) | Face Mill (Milling Cutter) | Larger diameter covers more area; lower cost per cutting edge; highest Material Removal Rate (MRR) on flat planes. |
| B: Pocketing & Slotting | End Mill (Slot Drill or Center-Cutting) | Essential for vertical entry (plunging) and creating perpendicular 90-degree walls which face mills cannot achieve. |
| C: 3D Contouring | Ball or Bull Nose End Mill | Capable of interpolating complex curves and slopes without leaving the "stepping marks" common with indexable cutters. |
| D: Deep Cavities | Reduced Shank End Mill | The relieved shank prevents rubbing against high walls while maintaining the rigidity required for deep reach. |
When stocking a tool crib or quoting a new job, the decision between solid end mills and indexable milling cutters often comes down to Total Cost of Ownership (TCO) and specific performance metrics.
There is a widely accepted economic logic in tooling procurement known as the "25mm Rule." Generally, for diameters below 25mm (approx. 1 inch), solid carbide end mills offer a better ROI. They are rigid, precise, and relatively affordable. Above 25mm, the cost of a solid rod of carbide becomes prohibitive. At this point, indexable milling cutters reduce TCO significantly. You purchase the steel body once, and thereafter only replace the small carbide inserts, making it the cost-effective choice for large-diameter cutting.
The workpiece material dictates the flute geometry required:
Aluminum: Requires high-helix, 2-3 flute end mills. The lower flute count creates larger gullets for efficient chip evacuation, preventing the gummy material from packing and welding to the tool.
Hard Steel: Requires variable helix, 4+ flute end mills or coated indexable cutters. The higher core strength helps resist deflection, and the higher flute count improves surface finish.
Efficient shops separate roughing and finishing strategies. For roughing, "Corn Cob" or "Ripper" milling cutters are excellent. Their serrated edges break chips into smaller pieces, reducing horsepower draw and heat generation. For finishing, high-flute count (5 to 7 flutes) solid end mills are superior. They provide more cuts per revolution, yielding superior Ra (Roughness Average) values that eliminate the need for secondary polishing.
When investing in capital equipment, evaluate the End Milling Machine Manufacturer based on their recommended tooling packages. Does the machine have the spindle rigidity (e.g., BT40 or BT50 taper) to handle large indexable cutters, or is it a high-speed HSK spindle optimized for small-diameter solid end mills? Aligning your procurement strategy with the machine's physical characteristics is essential for avoiding chatter and premature spindle wear.
While "milling cutter" serves as the broad category for rotary subtractive tools, the "end mill" is the undisputed workhorse of modern CNC machining. It is the versatility of the end mill—capable of drilling, slotting, and profiling—that unlocks the full potential of a 5-Axis CNC End Milling Machine. However, treating these tools as interchangeable is a costly mistake.
For maximum efficiency, shops must abandon the "one tool fits all" mentality. Adopt a strategy that leverages indexable milling cutters for bulk removal and large facing operations, while reserving high-quality solid carbide end mills for precision features, pockets, and contours. We encourage you to audit your current tool crib against your machine capabilities to identify efficiency gaps. By matching the right geometry to the right operation, you ensure precision, prolong machine life, and secure a competitive edge in manufacturing.
A: The primary difference lies in cutting direction. A drill bit is designed exclusively for axial (vertical) cutting to create holes. It cannot cut sideways. An end mill is designed for both axial and radial (side) cutting, allowing it to create slots, walls, and complex contours. While some end mills can drill, drill bits cannot mill.
A: Yes, you can use an end mill for facing, but it is generally less efficient than a face mill for large areas. End mills have smaller diameters, requiring more passes to flatten a surface. However, for small parts or narrow ledges, an end mill is often the preferred tool for facing.
A: Flute count balances chip clearance against core strength. Fewer flutes (2-3) provide large gullets for chip evacuation, making them ideal for soft materials like aluminum. More flutes (4+) create a thicker, stronger core and provide a better surface finish, making them suitable for harder steels and finishing operations.
A: A slot drill is a specific sub-type of end mill. It is a two-flute cutter with "center-cutting" geometry, allowing it to plunge vertically directly into the material like a drill. Standard multi-flute end mills may not be center-cutting and might require a pilot hole or ramp entry.
A: For a 5-Axis CNC End Milling Machine, solid carbide ball nose and tapered end mills are the standard. These shapes allow the tool to tilt and follow complex 3D surface curvatures without the tool holder colliding with the part or the cutting edge gouging the surface.
