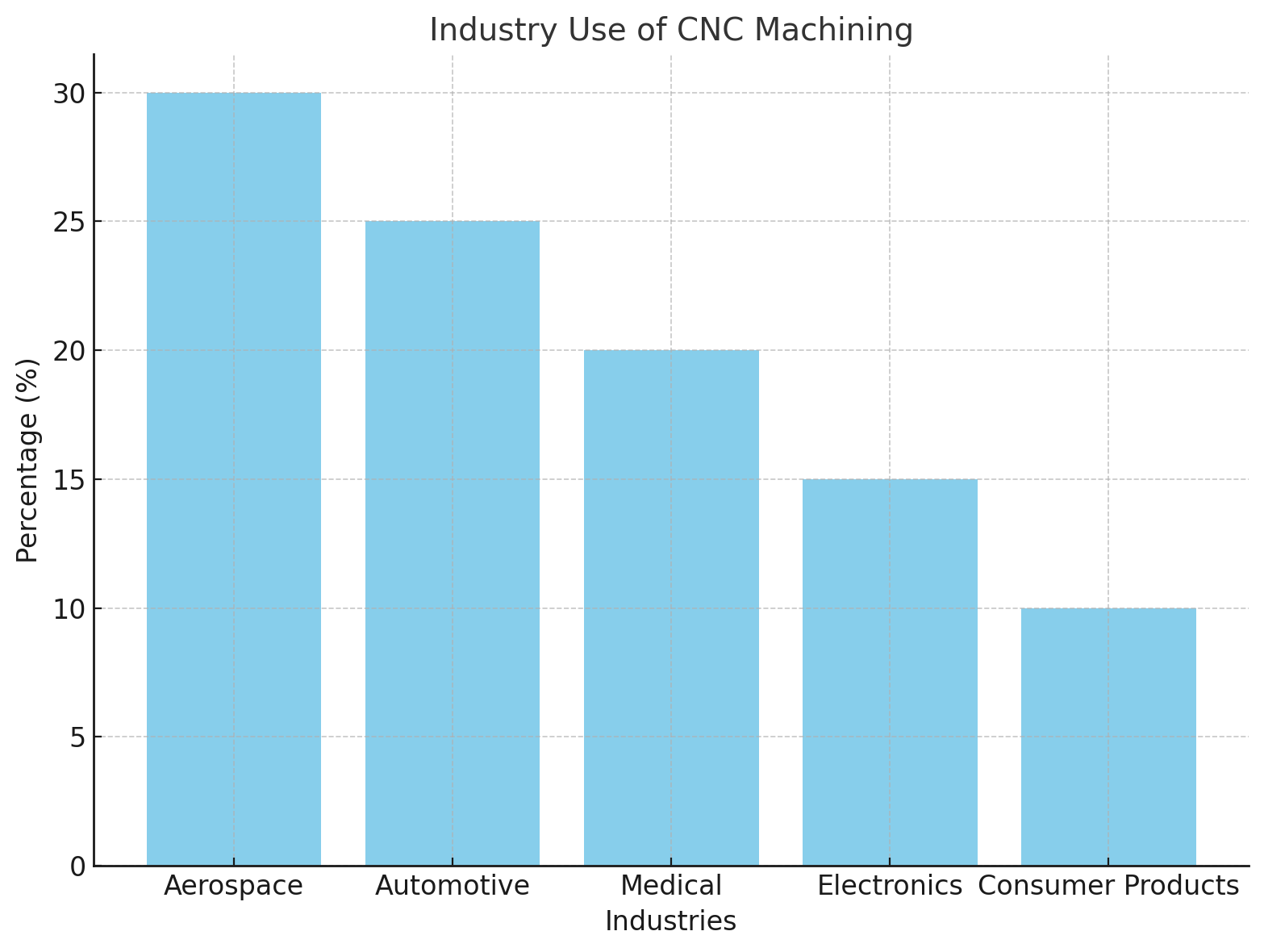

CNC machining has transformed modern manufacturing, enabling precise, high-quality production across various industries. However, designing parts for CNC machining requires careful consideration. One of the most crucial aspects is optimizing internal corner radii.
In this article, we’ll explore why internal corner radii matter in CNC machining and how optimizing them can improve part quality, reduce costs, and enhance machinability. You'll learn valuable tips to streamline your designs for better efficiency.
The geometry of CNC cutting tools plays a crucial role in determining the internal corner radii that can be achieved during machining. CNC tools are typically cylindrical, meaning that when cutting an internal corner, the resulting radius is dictated by the radius of the tool itself. This limits how sharp an internal corner can be, as a tool cannot fit perfectly into a 90-degree corner without leaving a radius. The smaller the tool diameter, the smaller the achievable radius, but this also increases the risk of tool engagement, chatter, and reduced surface quality.
Therefore, understanding the tool limitations is vital when designing for CNC machining. The larger the corner radii in your design, the easier it is for the tool to maintain smooth cutting paths, which results in better surface finishes and reduced wear on the tool.
Sharp internal corners pose a significant challenge in CNC machining. These sharp angles require the tool to make a hard stop and pivot, increasing vibrations and causing chatter marks on the surface. Not only does this result in poor surface finish, but it also increases machining time and tool wear. For example, if the corner radii are too tight, the cutting tool needs to work harder to engage the material, which can lead to greater stress on both the tool and the workpiece.
Therefore, avoiding sharp internal corners or optimizing them is essential for achieving the best possible surface finish, reducing machining time, and extending the life of cutting tools. For high-quality parts, designers should consider a slight radius on internal corners rather than sharp 90-degree angles.
When designing a part for CNC machining, the choice of corner radii directly influences the machining process. It is recommended to choose a corner radius that is at least one-third of the cavity depth or larger. This ensures that the tool can follow a smoother, more circular cutting path, minimizing vibrations and enhancing the surface quality. Larger corner radii also reduce cutting forces, which not only improves the finish but also speeds up the machining process.
The larger the radius, the faster the machine can operate since the tool does not need to engage as much material. In turn, this leads to reduced machining time and costs, making it a crucial consideration for cost-effective production.
In some designs, sharp corners are necessary for part functionality. However, using traditional sharp corners in CNC machining can be challenging and costly. An alternative approach is to use T-bone or dogbone fillets, which are practical solutions for corner optimization. These fillets extend the corner in one or two directions, respectively, providing clearance for tools while still allowing the part to maintain its fit and function.
T-bone fillets are often used when two parts must mate at a corner, and a slight radius is required to ensure proper assembly. Similarly, dogbone fillets create a more rounded corner that provides better clearance and reduces machining time by allowing tools to move freely. These fillets can be strategically placed in areas where sharp corners would normally be required, improving machining efficiency without sacrificing part integrity.
Corner Radius Size | Surface Finish Quality | Machining Time | Tool Wear | Recommended for |
Small (e.g., 0.5mm) | Poor | Long | High | Complex geometries requiring tight tolerances |
Medium (e.g., 1mm) | Good | Moderate | Moderate | Standard designs with moderate precision |
Large (e.g., 2mm) | Excellent | Short | Low | Simple designs, high-volume production |
Choosing the right tool for machining internal corners is essential to achieving optimal results. For larger radii, larger cutting tools are preferred as they can remove material more quickly and with less engagement, reducing machining time. On the other hand, smaller tools are used for tight radii but can cause more tool wear and longer machining times.
By aligning the tool size with the desired corner radius, you can optimize the machining process for both speed and surface quality. Moreover, selecting standard tool sizes can help reduce costs, as specialized tools may incur higher production and tool wear costs.
Tool Type | Radius Size Compatibility | Machining Speed | Cost Impact |
Small End Mills | Small radius (up to 1mm) | Slow | High |
Medium End Mills | Medium radius (1mm - 2mm) | Moderate | Moderate |
Large End Mills | Large radius (2mm+) | Fast | Low |
The choice of material plays a significant role in determining the feasibility and cost of machining internal corner radii. Softer materials such as aluminum are easier to machine and allow for larger corner radii with minimal tool wear. On the other hand, harder materials like stainless steel or titanium are more challenging to machine and may require smaller tools or more specialized techniques to achieve the desired radii.
Designers should also consider the material's strength and its ability to withstand machining forces. For example, high-strength materials may require larger corner radii to minimize tool engagement and reduce the risk of tool breakage. The material's thermal properties can also affect machining speed, as materials that generate excessive heat may require slower machining speeds to avoid tool damage.
Material Type | Machining Difficulty | Ideal Corner Radius | Recommended Tooling |
Aluminum | Easy | 1mm or higher | Standard CNC tools |
Steel (Stainless) | Moderate | 1.5mm or higher | Carbide tools |
Plastics (PEEK, Acetal) | Moderate | 1mm or higher | Standard CNC tools |
When dealing with complex geometries or extremely tight corner radii, Electrical Discharge Machining (EDM) is a viable alternative to traditional CNC cutting. EDM works by using electrical discharges to erode material, allowing for precise cuts in hard materials. This technique is particularly useful for machining sharp internal corners that are difficult to achieve with conventional tools.
Wire EDM and Sinker EDM are both commonly used for machining internal corners. Wire EDM involves using a thin wire to cut through the material, while Sinker EDM uses an electrode to erode the material. Both methods are highly effective for creating sharp corners and fine details, though they come with a trade-off in terms of speed and cost.
One of the most significant advantages of optimizing internal corner radii is the reduction in tool wear and machining time. By using larger radii, the cutting tool engages less material, leading to reduced wear and longer tool life. Additionally, larger radii allow the CNC machine to operate at higher speeds, reducing machining time and overall production costs.
Real-world examples show that optimizing internal corner radii can reduce machining time by as much as 30%, especially when using larger tools and minimizing tool engagement. This not only cuts down on labor costs but also improves throughput, enabling manufacturers to produce parts more efficiently.
Radius Optimization Level | Tool Wear | Machining Time | Production Cost |
No optimization (sharp corners) | High | Long | High |
Moderate optimization (small radius) | Moderate | Moderate | Moderate |
High optimization (larger radius) | Low | Short | Low |
Optimizing internal corner radii is crucial for improving CNC machining efficiency and part quality. By understanding tool limitations, choosing the right radius, and considering material and tool selection, designers can reduce machining time and costs. This approach is especially beneficial for complex geometries and tight tolerances. Engineers and manufacturers can streamline production and achieve better results by applying these design tips. Companies like Onustec specialize in optimizing CNC designs to enhance efficiency and lower production costs.
A: Optimizing internal corner radii helps reduce machining time, improve surface finishes, and lower tool wear, enhancing the overall efficiency and cost-effectiveness of CNC machining.
A: CNC machining tools are cylindrical, which means they can't create sharp internal corners. The tool radius directly influences the achievable internal corner radius, affecting part quality.
A: Choosing larger corner radii improves surface finish and reduces machining time, as larger tools can run faster and with less stress, optimizing the efficiency of CNC machining.
A: T-bone and dogbone fillets are used to improve part fit and machining efficiency by providing clearance for tools, ensuring smooth operations when sharp corners are necessary.
A: Different materials, like metals and plastics, affect the ease of machining corners. Softer materials are easier to machine, while harder materials may require specific tools or techniques.
