Features

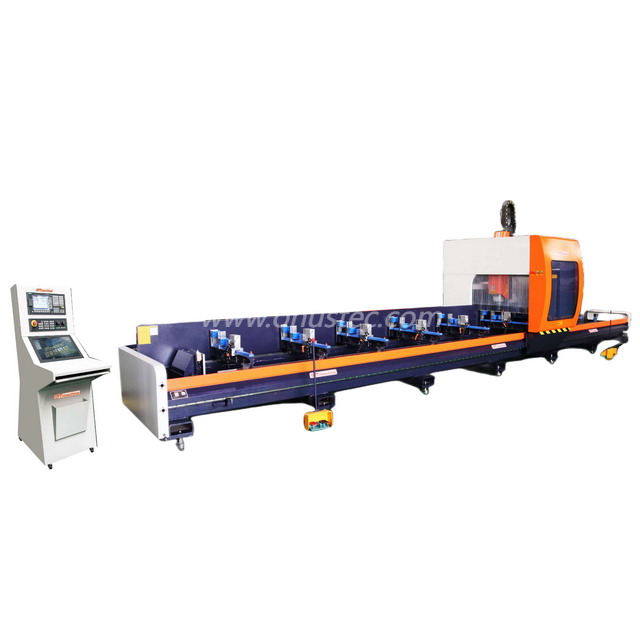

· 3-axis gantry cnc profile machining center
· Designed for economical and efficient machining of aluminium and thin-walled steel profiles
· All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces
· Double-side 8 positions linear tool magazine allows fast machining and short tool changing time,thus optimizing the machining cycles
· Operator cam software with graphic 3D display of workpieces(option)

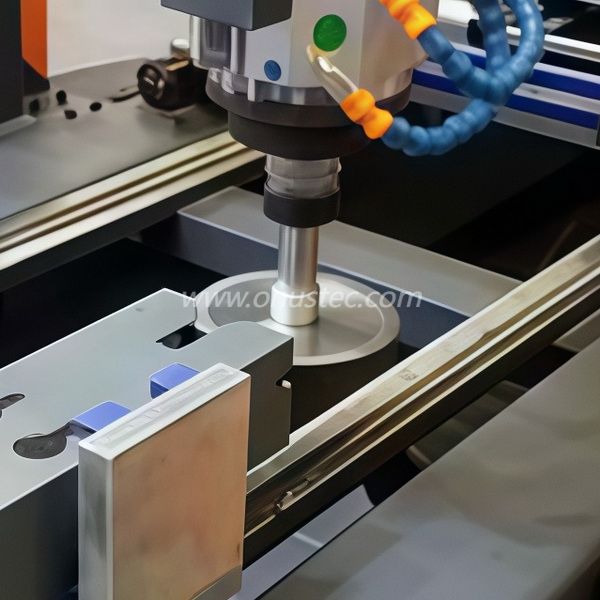

· The magazine can be equipped with T slot saw blade for end milling of transom profiles.

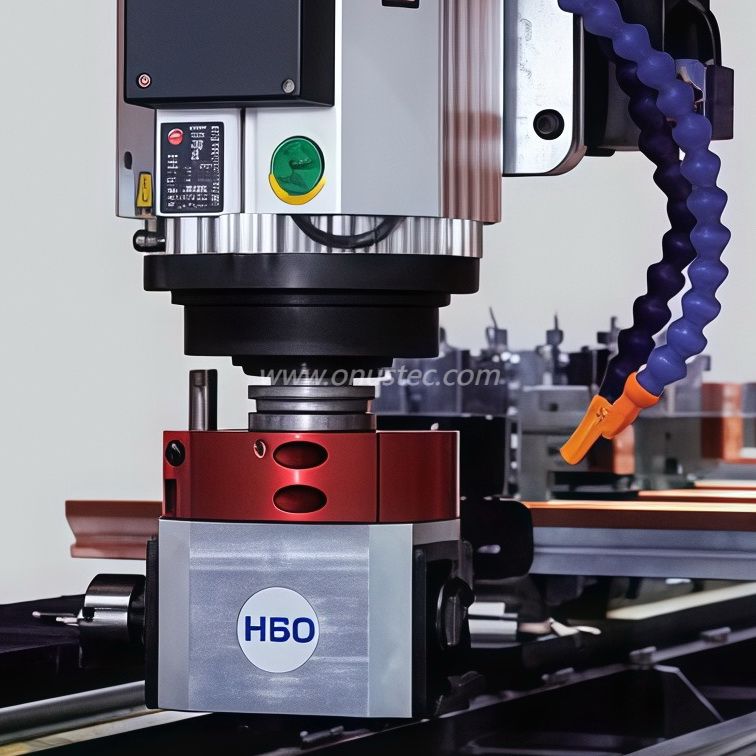

· Angle heads for lateral and profile end machining
· Creative dual industrial operation system and windows operation system
· Two separate working zones enable machining in shuttle operation(option)

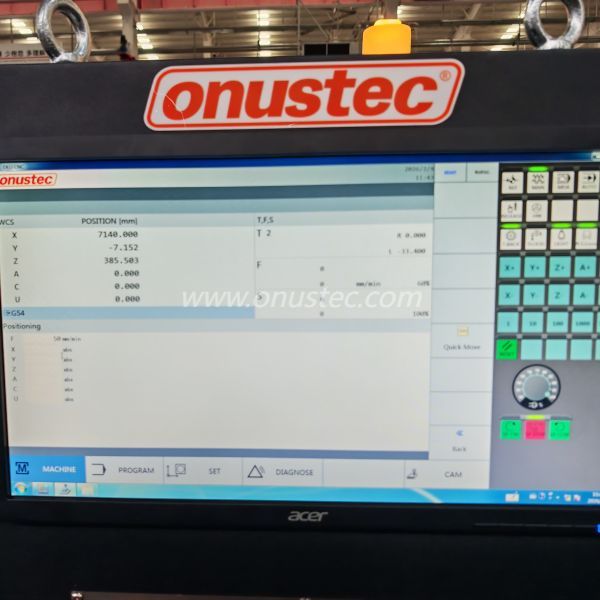

· 18.5" panel PC, USB ports and network connection
· Automatic Central Oil Lubrication System
· 3-axis controller
· camQuix (option)
Options
· Shuttle operation for working on two sides
· Angle routing head for machining from below
· T slot blade for milling profile tenon and mullion
· Automatic tool sensor and length measurement
· Auto Chips conveyor system
· Barcode scanner
· Label printer
· Tool holders
· Collet chuck
· Collets
· Saw blades
· Tools
