CNC Machining shapes everything from aircraft parts to smartphones, but its journey from manual machines to fully automated systems is often overlooked. Knowing how CNC Machining evolved helps engineers and buyers understand quality, cost, and supplier capability. In this article, you will explore how this technology grew into a foundation of modern manufacturing and why its history still matters today.
Before CNC Machining, all work was manual. Machinists used engine lathes, knee mills, and grinders, guided by dials, jigs, and their own feel. Skilled workers could hit tight tolerances, but every part depended on human focus and experience. Fatigue, small mistakes, and variation in technique made true repeatability hard.
Early mechanization tried to help. Cam-driven machines and simple automatic lathes took over repetitive moves. They were great for high volumes of simple parts, but changes to the design were painful. A new part often meant new cams or fixtures, which added time and cost. The system was efficient, but not very flexible.
As industries like automotive and aviation expanded, they demanded both volume and accuracy. Engines needed tighter fits. Airframes needed smoother contours. Manual machining could not meet these needs at scale. Companies wanted a way to “lock in” tool paths so the machine did the same thing every time, even across shifts and plants.
This pressure set the stage for Numerical Control. Instead of copying shapes with templates or cams, engineers started to ask if they could describe tool motion as numbers. If they could turn geometry into data, they could automate complex cuts and scale them across many machines.
In the late 1940s and early 1950s, this idea took form as Numerical Control (NC). Engineers used punched tape to store sequences of moves. Each row of holes represented a position or command. When the machine read the tape, it drove motors along defined axes and followed the path line by line.
It was not yet CNC Machining, because there was no true computer in the loop. However, NC already changed the rules. It separated the “thinking” (programming) from the “doing” (cutting). Once a program existed, shops could reuse it across multiple runs and even across different machines that understood the same code format.
The story of CNC Machining often starts with John T. Parsons. He worked on a problem that still sounds modern: how to make complex, three-dimensional shapes for helicopter blades and aircraft skins. These parts needed smooth, mathematically defined curves that were almost impossible to machine accurately by hand at scale.
Parsons used early computing equipment to calculate coordinates along an airfoil. He then punched these numbers onto cards and fed them to a jig borer. This approach linked math, data, and machining in a new way. It showed that toolpaths could come from calculated points rather than manual tracing. This concept sits at the heart of CNC Machining today.
The U.S. Air Force saw the potential and funded further research at the MIT Servomechanisms Laboratory. In 1952, MIT demonstrated a modified milling machine controlled by numerical input. Servo motors moved the axes according to instructions read from punched tape, not from a machinist’s hands.
This machine cut real parts in three axes using a repeatable, programmable method. It proved that complex, contoured shapes could be produced from coded data. For aerospace and defense, this was a huge step. It increased consistency and opened the door to more advanced aerodynamic designs.
The first NC machines still relied on hard-wired logic and simple electronics. Setup was slow. Changes required new tapes. As digital computers improved, engineers began to replace those fixed logic systems with programmable controllers.
This evolution created Computer Numerical Control, or CNC Machining. Instead of simply reading tape, the controller could store programs, apply corrections, and support more advanced functions. It could also communicate with other systems, which paved the way for networking and integration in later decades.
To drive these machines, early programmers used G-code for motion and M-code for machine functions. A G01 command told the tool to move in a straight line at a set feed rate. Other codes defined arcs, rapid moves, and coordinate systems. M-codes controlled coolant, tool changes, and spindle states.
At first, they still stored these codes on tape, typed using special machines. Even so, the programming layer gave manufacturers new flexibility. It became possible to adjust feeds, speeds, or paths by editing the code, rather than rebuilding hardware. Modern CNC Machining still relies on G-code as a common “language” between CAD/CAM systems and machine tools.
By the mid-1950s, companies started offering commercial NC and early CNC machines. One of the best-known examples was the Cincinnati Milacron Hydrotel, developed in partnership with MIT. It showed that numerical control was not just a lab experiment. It was a viable product that could enter normal production.
Early CNC Machining disrupted traditional workflows. It reduced dependence on master machinists for every step. It allowed companies to capture process knowledge in programs instead of only in people’s heads. It made it possible to produce smaller batches of complex parts more consistently.
For B2B buyers, this set a new expectation. Instead of asking, “Can you make this at all?” they could start to ask, “How repeatable is it? Can you scale it globally? How stable are the tolerances over time?” Those are still the core questions in supplier audits today.
In the 1970s, microprocessors arrived in CNC controllers. They replaced racks of relays and discrete components with compact, programmable boards. This change improved reliability and made updates easier. It also allowed more complex functions, such as tool compensation, canned cycles, and better interpolation.
For operators, the interface slowly became more friendly. CRT screens replaced paper lists. Soft keys and menus made navigation easier. Shops could now train more people to run the equipment, which helped spread CNC Machining into smaller manufacturers.
By the late 1970s and 1980s, Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) became common. Engineers could design parts as 3D models, then generate toolpaths directly from the geometry. The software created the G-code needed for CNC Machining, instead of forcing programmers to write every line by hand.
This integration cut programming time and reduced errors. It also encouraged more complex geometries, since designers no longer had to worry as much about manual coding effort. Today, most CNC Machining projects still follow this path: CAD model → CAM toolpath → CNC machine.
By the late 1980s and 1990s, CNC Machining had moved from “advanced option” to standard practice in many factories. It was especially dominant in sectors that needed high precision and medium-to-high volumes. Once a part was programmed and proven, shops could run it for years, updating only when the design changed.
For B2B buyers, this era set the expectation that CNC Machining should deliver both quality and competitive pricing. It also cemented the idea that a “mature” supplier would have multiple CNC machines, backup capacity, and a clear process for managing revisions.
Era | Dominant Tech | Typical Use Case |
Pre-1940s | Manual machines | Low-volume, high skill, simple parts |
1950s–1960s | NC, early CNC | Aerospace, defense prototypes |
1970s–1990s | CNC + CAD/CAM | High-precision industrial production |
Modern CNC Machining still relies on three core building blocks that date back to early NC: a mechanical machine tool, a controller, and a drive/feedback system. The machine provides stiffness, spindle power, and axis travel. The controller reads the program and coordinates motions. The drives and encoders make sure each axis follows the commands accurately.
The history explains why these elements are often modular. Users can pair different machines and control brands, as long as they integrate correctly. For buyers, this means two shops might both “do CNC Machining” but have very different underlying stacks, which affects performance and uptime.
Lessons learned from early automation drove the move toward cells and systems. Stand-alone CNC machines still exist, but more advanced plants now combine machines, pallet pools, and robots. Raw stock goes in at one end. Finished parts come out at the other, sometimes with minimal human intervention.
This approach grows directly from the original NC dream: consistent, repeatable production with fewer human errors. Today it supports “lights-out” CNC Machining during nights and weekends, which can cut cost per part and improve delivery speed.
Over time, several core machine families emerged:
● CNC lathes and turning centers for shafts, bushings, and rotational parts.
● CNC mills and machining centers for prismatic parts and complex 3D surfaces.
● Multi-axis and mill-turn machines that combine both, reducing setups.
Each platform reflects decades of incremental improvement. They offer faster spindles, better rigidity, and more axes, but still follow the same principles shown in the first NC machines. For buyers, platform selection matters. It affects cycle time, achievable geometries, and cost structure.

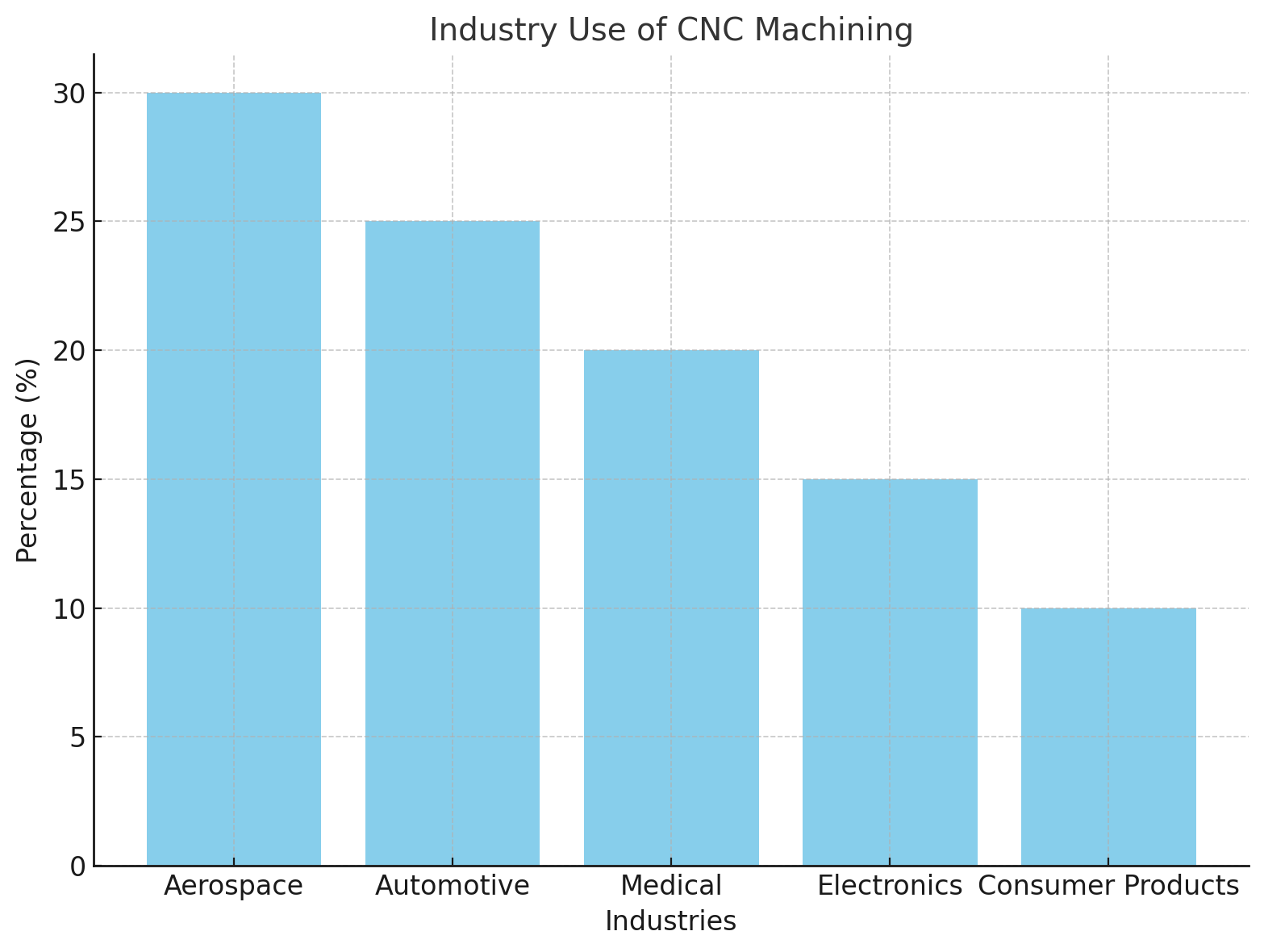

Aerospace and defense were among the first to embrace CNC Machining. They needed complex, load-critical parts made from hard alloys, often in small batches. The consistency and precision of CNC made it possible to certify processes and maintain traceability over long program lives.
As equipment costs dropped, other industries followed. Automotive used CNC Machining to produce engine components, transmission housings, and tooling. Medical turned to CNC for implants and instruments that must match anatomy and tight regulations. Electronics used it for housings, heatsinks, and fixtures for assembly lines.
Each sector pushed CNC Machining in slightly different directions. Automotive demanded cycle time and robustness. Medical demanded traceability and validation. Electronics demanded fine features and small batch flexibility. Together, they widened the technology’s toolkit.
Modern CNC Machining offers precision that early NC pioneers could only dream of. Multi-axis machines cut complex shapes in one or two setups instead of many.
This capability allows engineers to design lighter, more integrated parts. They can combine functions in a single machined component instead of many assembled pieces. For buyers, it creates chances to reduce part counts and simplify supply chains, if they work closely with their CNC partners.
The latest wave of change brings connectivity. Many CNC controllers now support data collection and remote monitoring. Shops can track spindle utilization, tool life, and scrap rates in real time. They can also push program updates centrally and analyze trends across machines and shifts.
CNC Machining no longer stands alone. It now operates next to additive manufacturing, laser cutting, and other advanced methods. Many companies print near-net shapes in metal or plastic, then finish critical surfaces using CNC. Others use CNC Machining only for features that need tight tolerances or strong threads.
Looking ahead, many plants aim for “lights-out” CNC Machining. Robots load and unload parts. Pallet systems rotate jobs automatically. Machines send alerts only when something needs human attention. This approach builds directly on the original NC goal of high repeatability and low labor per part.
For buyers, this trend will likely mean more stable pricing over time, especially for repeat parts. It may also mean more consolidation, as shops that cannot invest in automation struggle to compete.
As CNC Machining evolves, the required skills change again. Future machinists will spend less time turning handwheels and more time reading data, tweaking programs, and solving system problems. They will need both shop sense and digital skills.
This shift has a direct impact on sourcing strategies. Buyers may find that the highest-value suppliers are the ones who attract and retain this new kind of talent. Machine lists and certifications will matter, but so will culture, training, and technical partnerships.
The history of CNC Machining is a journey of innovation, driven by the need for higher precision and volume. From early manual tools to punched-tape NC, pioneers like John T. Parsons laid the groundwork for today’s advanced systems. Modern CNC machines are connected, multi-axis systems that still rely on the same principles of geometry and numerical control. Understanding this evolution helps engineers and B2B buyers make informed decisions. As automation and new materials drive the future, companies like Onustec offer valuable CNC Machining solutions that provide precision, efficiency, and cost-effectiveness, helping businesses turn ideas into reliable, high-quality parts.
A: CNC Machining refers to a manufacturing process controlled by computers, where machine tools follow coded instructions to create precise parts. It automates processes that were previously manual, improving efficiency and accuracy.
A: CNC Machining evolved from manual tools to punched-tape NC systems in the 1950s, and then to modern, computer-controlled machines. Innovations like CAD/CAM integration and microprocessors led to its current automated form.
A: CNC Machining was developed to meet the demand for higher precision and efficiency in manufacturing. It automated complex tasks, improving consistency and reducing human error in production.
A: CNC Machining offers numerous benefits, including high precision, repeatability, reduced labor costs, and the ability to produce complex geometries with minimal human intervention.
A: Unlike traditional machining, CNC Machining is fully automated. It uses computer-generated programs for tool movement, which ensures higher precision and consistency compared to manual methods.
A: CNC Machining is used across various industries, including aerospace, automotive, medical, and electronics, where high precision and repeatability are essential for creating complex parts.
A: CNC Machining reduces manufacturing costs by increasing automation, improving accuracy, and minimizing material waste. It enables faster production and less reliance on skilled labor.
