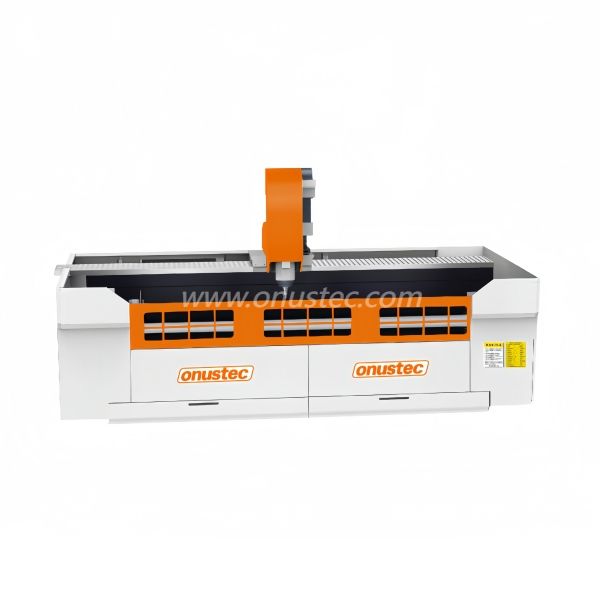

3+1 Axis CNC Profile Machining Center

• 3+1 axis profile      machining center

• Designed for economical      and efficient machining of aluminium and thin-walled steel profiles

• All operations, such as      routing, drilling, tapping, thread milling, notching and sawing, are      performed while the profile bar is stationary to protect the profile      surfaces

• Servo rotary worktable      allows 3+1 Axis surfaces fabrication

• 4 positions linear tool      magazine allows fast machining and short tool changing time,thus      optimizing the machining cycles

• Professional cam system      with graphic 3D display of workpieces for convenient operation.

• The magazine can be      equipped with T slot saw blade for end milling of transom profiles.

• Automatic protection      doors for safety

• Automatic Central Oil      Lubrication System

• 3-axis controller

Options

• Angle routing head for      machining from below

• T slot blade for milling      profile tenon and mullion

• Automatic tool sensor and      length measurement

• Auto Chips conveyor      system

• Light Curtain

• Barcode scanner

• Label printer

• Tool holders

• Collet chuck

• Collets

• Saw blades

• Tools
