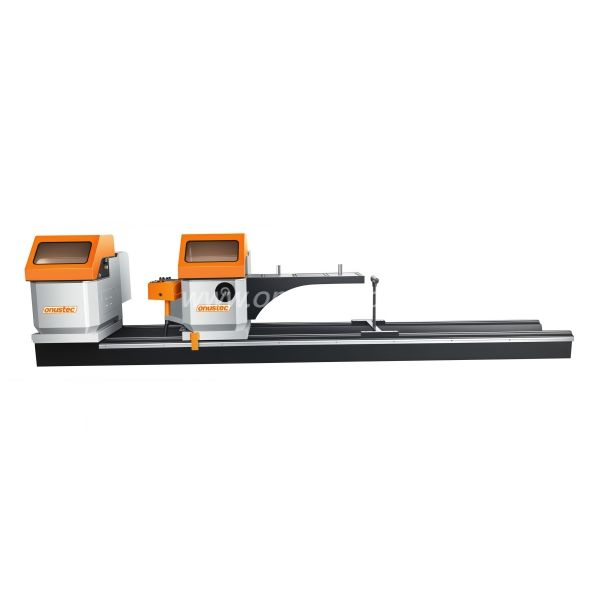

Large Heavy Duty Digital Display Double Mitre Saw

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This Large Heavy Duty Digital Display Double Mitre Saw is applicable for 45/90 Degree Cutting of Large Aluminium Metal Profiles with 600mm blades, it adopts Creative German Design Concepts and Production Technics in accordance with European High Standards and continuous optimization.

It adopts Famous Easy Operated Man-Machine Conversation Interface,Casting Machine Base, as well as Famous High Precision Components,specially the Powerful Professional Assembly Engineering Technics that Well Trained by German Engineers,which ensures the wide processing range for large and complicated profiles and High Precision for High End Processing Requirements.
Availability:
Quantity:

Features

· High efficient cuts possible for all variant cutting

· Ideal machine for high-volume series production when cutting at 90° and 45°

· Liquid mist diffuser coolant system for aluminium machining

· Equipped with saw blades and safety hoods as standard

· Equipped with digital display system for convenient readout

· Equipped high precision linear guide as standard

· 1 pc mobile workpiece support and roller conveyor as standard

· Horizontal and vertical pneumatic material clamping units

· 2x4.0KW motors for fast and thick profile bar cutting

· 600mm dia. Blades provide bigger cutting range

· Optimized protection shields as standard

· Hydro-pneumatic feeding as standard

Cutting length variants

· 3,000 mm

· 4,500 mm

· 6,000 mm

· 7,500 mm

· Additional lengths on request

Options

· Label printer

· Saw blades

· Safety fence

· Mobile workpiece support

· Material clamping units

· Stationary and/or travelling roller conveyor

· High performance cutting fluid for aluminium machining



Model No.

OYT-G600D

Cutting Length

460-6000mm

Cutting Width

270mm

Cutting Height

180mm

Cutting Angle

45/90°

Machining Accuracy

±0.1mm/m

Blade Diameter

600mm×2

Cutting Motor

4.0KW×2

Motor Speed

2860rpm

Servo Motor

/

Total Power

8.0KW

Cooling Type

Liquid Diffuser

Lubrication System

Central Auto

Voltage

3Phase,380V/415/220,50Hz or Custom-made

Working Air Pressure

0.6Mpa-0.8Mpa

Machine Dimension

7500x1600x1600mm

Machine Weight

2000kg
